Brake Caliper Rebuild: The Ultimate Guide to Using a Repair Kit

Is your car having brake problems? Maybe the brake sticks, the pedal feels spongy, or you notice fluid leaking. These are clear signs that your brake caliper is failing.

Don’t rush to pay for an expensive caliper replacement at a shop just yet. There’s a professional solution you can often handle yourself.

The answer is a brake caliper repair kit. This small, affordable package has everything you need. It will restore your original caliper to work like new.

This guide will help you decide whether to rebuild or replace your caliper. We’ll walk you through the entire rebuild process step by step. You’ll also get expert tips to make sure your repair is both safe and successful.

Rebuild vs. Replace: Which Is Right?

Choosing between rebuilding and replacing your caliper is crucial. Your decision depends on several factors. Consider the caliper’s condition, your budget, and how confident you feel doing the work.

Is Rebuilding Worth It?

For many car owners, the answer is absolutely yes. The benefits are significant and appealing for any DIY enthusiast.

Rebuilding saves you substantial money. You also get to restore the original equipment part, which is often better quality than many aftermarket replacements.

Successfully rebuilding a caliper teaches you valuable skills. This makes you a more capable home mechanic.

Data from automotive repair communities shows interesting results. Rebuilding a standard caliper costs only 15-20% of a new OEM replacement part. This could save you over $100 per caliper.

Signs You Should Rebuild

Your caliper might be perfect for rebuilding if it shows certain symptoms but is structurally sound.

• Brake fluid leaks from the piston seal area.

• A sticking or seized piston causes brake drag or uneven pad wear.

• The rubber dust boot is torn, cracked, or missing.

• You have a spongy brake pedal that doesn’t improve after bleeding the brakes thoroughly.

When Replacement Is Safer

Sometimes rebuilding isn’t safe or practical. Certain conditions mean the caliper is beyond repair and must be replaced.

A member on a popular Reddit mechanic forum shared an important story. They tried to rebuild a caliper with a deeply pitted piston bore. The new seal failed within a month, causing a dangerous fluid leak. This shows why thorough inspection is essential.

You must replace the caliper under these conditions:

• Visible cracks anywhere in the caliper housing.

• Severe corrosion or deep pitting in the piston bore that can’t be honed out.

• Stripped or damaged threads for the bleeder screw or brake line banjo bolt.

When the caliper is beyond repair, replacement is your best option. If you want speed over savings, a complete replacement works too. A reliable unit like the BYD brake caliper gets you back on the road quickly with guaranteed performance.

Cost, Time, and Difficulty

Here’s a direct comparison to help you decide.

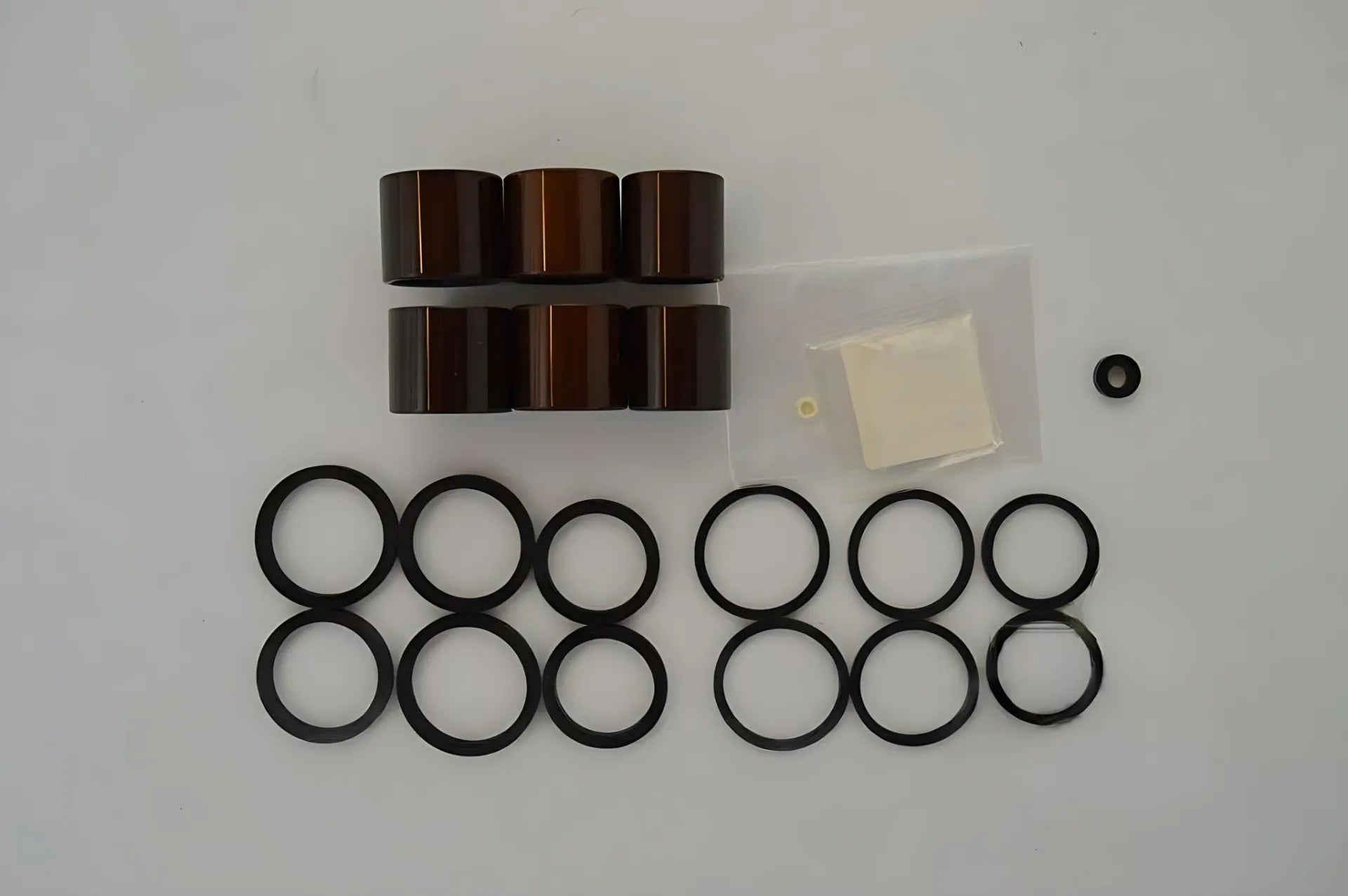

Inside a Caliper Repair Kit

A brake caliper repair kit looks simple, but each part is critical. These components ensure your braking system stays safe and performs well.

Unboxing Your Kit

Most standard caliper rebuild kits contain the same essential parts.

• Piston Seal (Square-Cut Seal): This is the most important part. It creates the hydraulic seal that pushes the piston out.

• Dust Boot: This flexible rubber boot protects the piston and inner seal from road grime, water, and debris.

• Guide Pin Boots & Bushings: For floating calipers, the kit includes new boots for the guide pins.

• Bleeder Screw Cap: A simple rubber cap that keeps the bleeder nipple clean and corrosion-free.

• Assembly Lube: A small packet of specialized grease that’s safe with brake fluid for installing new seals.

The Science of the Seal

That small, square rubber ring is an engineering marvel. It does much more than just seal in fluid.

When you press the brake pedal, hydraulic pressure flexes the square-cut seal forward. This pushes the piston out against the brake pads.

When you release the pedal, pressure drops. The seal’s natural elasticity makes it return to its original square shape. This retracts the piston just a tiny amount. This small movement prevents brake drag and ensures smooth operation.

The Complete Rebuild Tutorial

Here’s the complete, step-by-step process for rebuilding a standard single-piston brake caliper. Precision and cleanliness are absolutely essential.

Before You Begin: Tools & Safety

Gather everything you need beforehand. This makes the job smoother and safer. Never compromise on safety equipment.

Tool Checklist

• Socket Set and Wrenches (Metric or SAE)

• New, Sealed Container of Brake Fluid (DOT 3 or 4)

• Fluid Drain Pan

• C-Clamp or Brake Piston Tool

• Plastic or Brass Pick Set

• Brass Wire Brush (NOT steel)

• Brake Cleaner Spray

• Lint-Free Rags

• Torque Wrench

Safety Checklist

• Safety Glasses (Non-negotiable)

• Nitrile Gloves

• Hydraulic Jack and Jack Stands

• Wheel Chocks

Step 1: Safe Caliper Removal

Securing the vehicle properly is the first and most critical safety step.

With the vehicle on the ground, slightly loosen the wheel’s lug nuts.

Chock the wheels that will stay on the ground. Jack up the vehicle and secure it firmly on jack stands.

Remove the lug nuts and the wheel.

Place your drain pan under the caliper. Use a line wrench to slightly loosen the brake line fitting (banjo bolt), but don’t remove it yet.

Unbolt the two caliper mounting bolts (or guide pin bolts) and slide the caliper off the brake rotor.

Now fully unscrew the banjo bolt. Quickly plug the brake line with a vacuum cap or thread in a clean bolt loosely to minimize fluid loss.

Step 2: Caliper Disassembly

This step often challenges beginners the most: getting the piston out safely.

Removing the Piston

The best method uses compressed air. Place a block of wood inside the caliper where the brake pads would sit.

Use a rubber-tipped air nozzle to apply short bursts of low-pressure air into the brake line inlet. Be ready for a loud ‘pop’ when the piston releases. The wood is essential to catch the piston. This prevents it from becoming dangerous or getting damaged.

If a piston is severely stuck, try the grease gun method. This is an effective alternative. Fit a zerk fitting to the brake line inlet and use a standard grease gun to hydraulically force the piston out. This method is messy but very powerful.

Once the piston is out, use a plastic pick to carefully pry the old dust boot off the caliper body. Then reach inside the bore and gently pry out the old square-cut piston seal.

Step 3: Crucial Cleaning & Inspection

Your rebuild’s success depends entirely on how well you clean and inspect the parts. A study by the Auto Care Association found something important. Most premature rebuild failures trace back to inadequate cleaning of the piston bore.

Do:

• Use brake cleaner and a brass wire brush to thoroughly clean the piston bore. Pay special attention to the groove where the piston seal sits.

• Clean the piston itself completely, removing all old fluid residue and grime.

• Inspect the piston and the inside of the bore for pitting, scoring, or corrosion. You can polish away light surface blemishes, but deep marks mean the part is ruined.

Don’t:

• Never use a steel wire brush, steel wool, or any abrasive like sandpaper inside the caliper bore. This creates micro-scratches that will damage the new seal and cause failure.

Step 4: Installing New Seals

Patience and the correct lubricant are essential for a leak-free installation.

First, dip the new square-cut piston seal in clean brake fluid from your new bottle. Carefully work it into the groove inside the caliper bore. Use your fingers to make sure it sits flat and isn’t twisted.

Next, fit the new dust boot into its outer groove on the caliper body. This can be the trickiest part of the job.

Lubricate the outside of the piston with more clean brake fluid. Gently and squarely push the piston back into the bore. As you push, make sure the lip of the dust boot correctly seats over the edge of the piston. A small, blunt tool can help guide it into place.

Step 5: Final Reassembly

Reassembly reverses the removal process.

Re-install the caliper over the brake pads and onto its mounting bracket.

Install the brake line with the new copper sealing washers from your repair kit. One washer goes on each side of the banjo fitting.

Tighten the caliper mounting bolts and the banjo bolt to the manufacturer’s specified torque. You can find torque specifications in a vehicle-specific repair manual or through online resources like AllDataDIY.

Step 6: Bleeding the Brakes

This final step is absolutely critical. Air compresses, while brake fluid doesn’t. Any air left in the system will create a spongy, unsafe brake pedal.

You need to bleed at least the caliper you worked on. However, it’s good practice to bleed the entire system.

Use the two-person method or a vacuum/pressure bleeder. Bleed the caliper until no more air bubbles come from the bleeder screw.

Watch the master cylinder fluid level closely throughout this process. Never let it run dry, or you’ll introduce more air into the system and have to start over.

Pro Tips & Common Mistakes

Avoiding a few common mistakes can mean the difference between success and frustrating failure.

The Right Lubricant Matters

This causes frequent and dangerous confusion.

Use only clean brake fluid or the special assembly lubricant from your kit. This applies to the piston and the internal square-cut seal.

Never use petroleum-based grease, silicone paste, or anti-seize inside the caliper. These substances make rubber seals swell, soften, and fail over time. This leads to a seized caliper or fluid leak.

Is Rebuilding Hard?

Let’s answer this common question honestly.

On a scale of 1 to 10, a caliper rebuild rates about a 6. It requires more finesse, patience, and cleanliness than a simple brake pad change. But it’s absolutely doable for a DIYer with the right tools and careful approach.

A poll on a major automotive Reddit community found interesting results. Over 70% of members who tried the job for the first time rated it as “challenging but rewarding.” They would do it again to save money.

Don’t Forget Guide Pins

While the caliper is off the vehicle, it’s perfect time for other maintenance.

If you have a floating caliper design, remove, clean, and re-lubricate the guide pins. Use high-temperature silicone brake grease for this task.

Seized or sticky guide pins cause uneven brake pad wear. They can mimic the symptoms of a sticking piston. Servicing them is quick and easy. This ensures smooth brake operation.

The Payoff: Restored Performance

With the job done and tools put away, you can now enjoy the results of your hard work.

“Like-New” Braking Power

A proper rebuild produces immediately noticeable results. You should experience a firm, responsive brake pedal. Stops should be smooth and quiet. The pulling or dragging that started it all should be completely gone.

You’ve successfully completed a professional-level repair. You’ve restored a critical safety system on your vehicle.

The Long-Term Value

You haven’t just fixed a problem. You’ve restored a component to its original performance standard.

You saved significant money compared to replacement. You also prevented a perfectly good, high-quality OEM part from ending up in the scrap heap.

This benefits your wallet, the environment, and your personal skillset. That’s the true value of a job well done.
