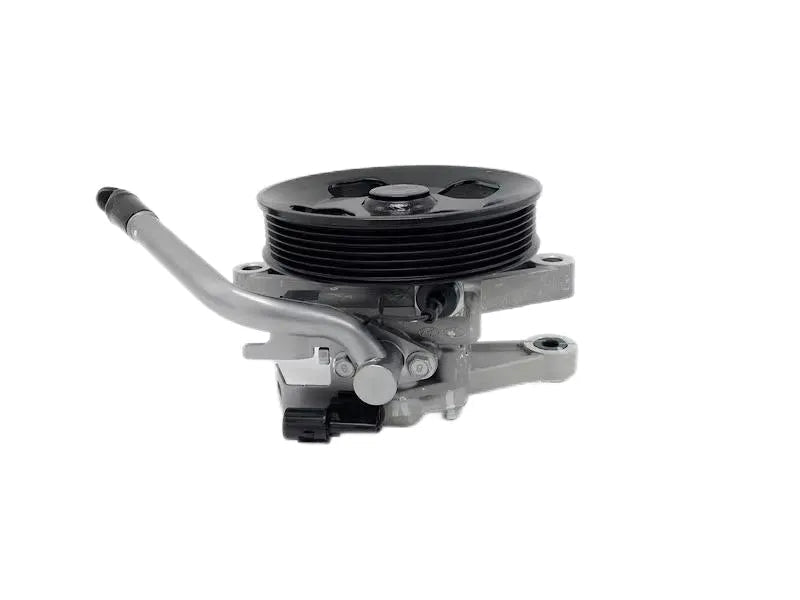

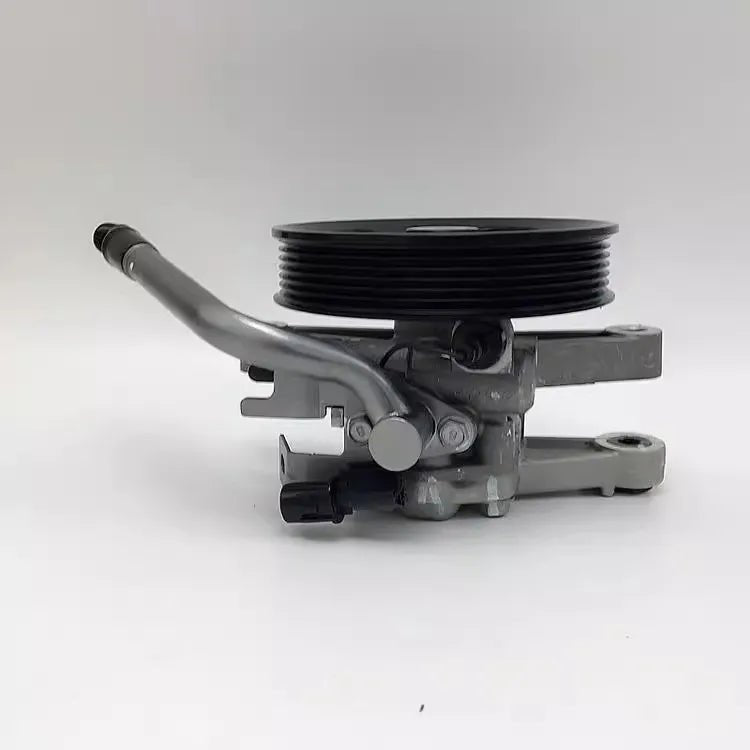

Kia Rio Forte Soul Spectra Steering Gear Steering Power Pump

Description

Installation Steps

1. Pre - installation Preparation

• Gather Tools: You'll need a socket set, a wrench set, a power steering fluid drain pan, a pulley puller (if required), a torque wrench, and a new power steering pump along with a new gasket or O-ring.
• Safety First: Park the vehicle on a flat surface, engage the parking brake, and turn off the engine. Let the engine cool down to avoid burns. Disconnect the negative terminal of the battery to prevent electrical shock.

2. Drain the Power Steering Fluid

• Locate the power steering fluid reservoir under the hood. Use a turkey baster or a fluid pump to remove as much fluid as possible from the reservoir.
• Place the power steering fluid drain pan under the power steering pump. Loosen the return hose and the pressure hose connections at the pump. Allow the remaining fluid to drain into the pan. Properly dispose of the old power steering fluid according to local regulations.

3. Remove the Drive Belt

• Locate the drive belt tensioner. Use a socket or a wrench to relieve the tension on the drive belt by turning the tensioner in the appropriate direction. Slide the drive belt off the power steering pump pulley.

4. Disconnect Electrical Connectors

• If there are any electrical connectors attached to the power steering pump, carefully disconnect them. This may include sensors or solenoids.

5. Remove the Power Steering Pump

• Locate the mounting bolts that secure the power steering pump to the engine. Use a socket or a wrench to remove these bolts.
• Gently pull the power steering pump away from the engine. Be careful not to damage any surrounding components.

6. Install the New Power Steering Pump

• Clean the mounting surface on the engine where the power steering pump will be installed. Remove any debris, old gasket material, or sealant.
• Place the new gasket or O - ring on the pump if required. Position the new power steering pump onto the engine and align it with the mounting holes.
• Insert the mounting bolts and hand - tighten them initially. Then, use a torque wrench to tighten the bolts to the manufacturer - specified torque settings.

7. Reconnect Hoses and Electrical Connectors

• Reconnect the pressure hose and the return hose to the new power steering pump. Tighten the hose clamps securely to prevent leaks.
• Reconnect any electrical connectors that were disconnected earlier.

8. Install the Drive Belt

• Use the drive belt tensioner to relieve the tension again. Slide the drive belt back onto the power steering pump pulley and all other appropriate pulleys. Release the tensioner to apply the correct tension to the belt.

9. Refill the Power Steering Fluid

• Fill the power steering fluid reservoir with the recommended type and amount of power steering fluid. Refer to the vehicle's owner's manual for the correct fluid specifications.
• Start the engine and turn the steering wheel from lock to lock several times to bleed air from the power steering system. Check the fluid level in the reservoir and add more fluid if necessary.

10. Check for Leaks

• With the engine running, visually inspect the power steering pump, hoses, and connections for any signs of fluid leaks. If a leak is detected, turn off the engine immediately and address the issue.

11. Reconnect the Battery

• Reconnect the negative terminal of the battery.
