Gwm Tank 300 Adjustable Shock Absorbers

Description

High-strength materials, safety and durability: Selected high-quality alloy steel and aviation aluminum, after precision processing, to ensure that the shock absorber can maintain stability and reliability in extreme conditions, greatly enhancing the service life and driving safety.
Precision oil seal to prevent oil leakage: Adopting double-layer oil seal technology imported from Germany effectively prevents oil leakage, ensuring the shock absorber's performance is durable and stable, and avoiding performance degradation caused by oil leakage.
Integral cylinder, high efficiency of shock absorption: The integrated design effectively disperses the impact force and enhances the efficiency of shock absorption, which can keep the body stable and reduce the feeling of bumps even in the face of rugged road surface.
Customized springs for perfect support: According to different models and needs, a wide range of pounds of springs are available to ensure a perfect match of the suspension system, providing the best support and improving the handling limit.
Convenient Installation, Worry-free Upgrade: Adopting the original position non-destructive installation design, no additional modification is needed, you can easily upgrade, saving time and effort, so that you can quickly experience the performance improvement.

Includes(skus)

1.Haval H5 (Soft and hard adjustable height 6.5cm/2.56inch)

2.Haval H6 (Soft and hard adjustable height 6.5cm/2.56inch)

3.Haval H7 (Soft and hard adjustable height 6.5cm/2.56inch)

4.Haval H9(Soft and hard adjustable height 6.5cm/2.56inch)

5.Gwm Tank 300 (Soft and hard adjustable height 6.5cm/2.56inch)

6.Gwm Tank 500 (Soft and hard adjustable height 6.5cm/2.56inch)

Installation steps

Preparation:
Safely lift the vehicle and remove the corresponding wheels. It may be necessary to remove peripheral parts that affect shock absorber replacement, such as brake fluid line retaining clips, ABS sensor harness, etc. CAUTION: Handle with care to avoid damage.
To remove the stock shock absorber:
Loosen and remove the top nut securing the stock shock absorber assembly. Loosen and remove the lower retaining bolt/nut of the shock absorber. Carefully remove the stock shock absorber assembly.
Installing the Adjustable Shock Absorber:
Place the new adjustable shock absorber assembly in place in the correct orientation (refer to the product markings or factory parts).
Secure the top shock absorber nut first, do not fully tighten.
Then attach the lower part of the shock absorber and tighten the bolt/nut to the factory specified torque.
Finally, tighten the shock absorber top nut to the factory specified torque.
Height and Damping Tuning (Core Steps):

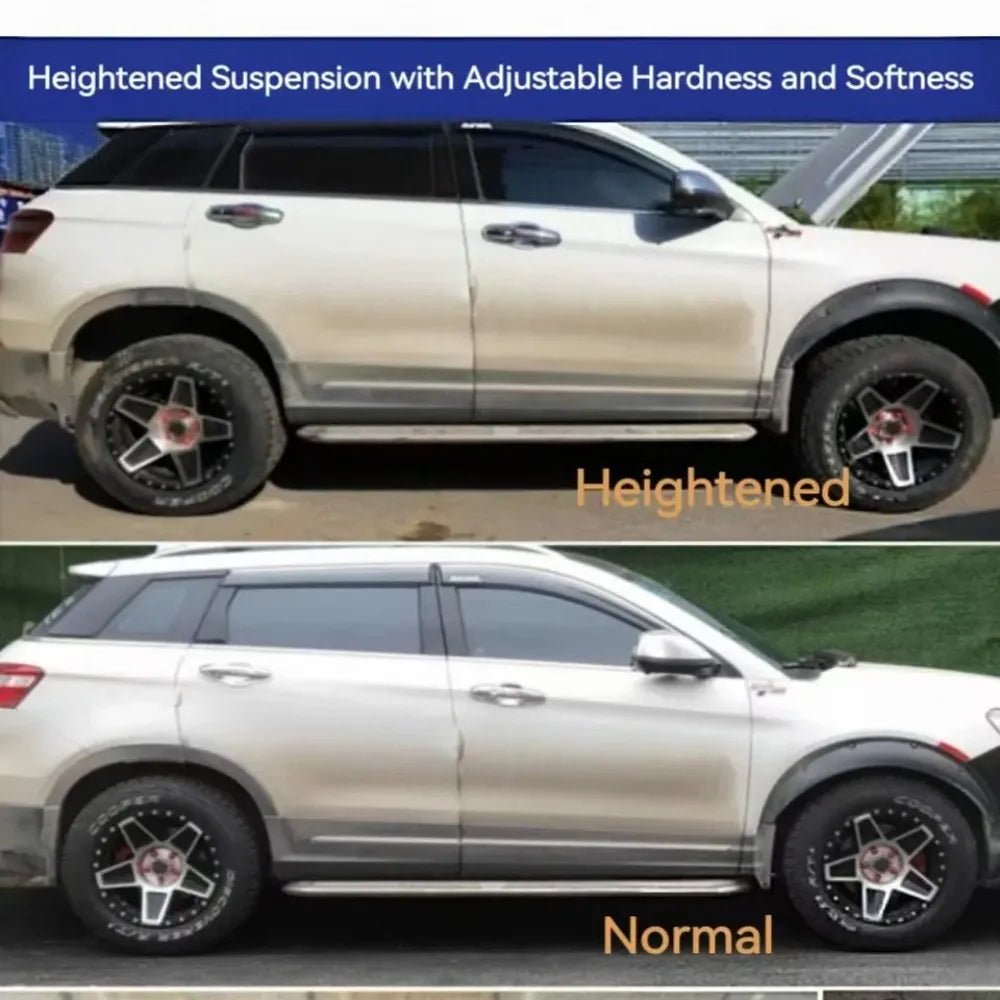

Adjust the position of the spring seat or lower tray on the body of the shock cartridge using the special wrench supplied to set the desired body height.
Key: Ensure that the heights of the left and right sides are the same. It is recommended to take several measurements until the desired height is reached. Be sure to lock the retaining ring after adjustment.
Damping Tuning:

Adjust the damping force with the knob on the top or bottom of the shock absorber according to driving preference and road conditions.
Key: Clockwise usually increases damping (stiffens), counterclockwise decreases damping (softens). It is recommended to start in the middle or recommended value and fine tune gradually. Ensure that the number of tuning segments is consistent for each shock absorber.
Recovery & Inspection:
Reinstall peripheral parts previously removed (brake fluid line retaining clips, ABS sensor harness, etc.).
Install the wheels and tighten the wheel nuts to the specified torque.
Lower the vehicle.
