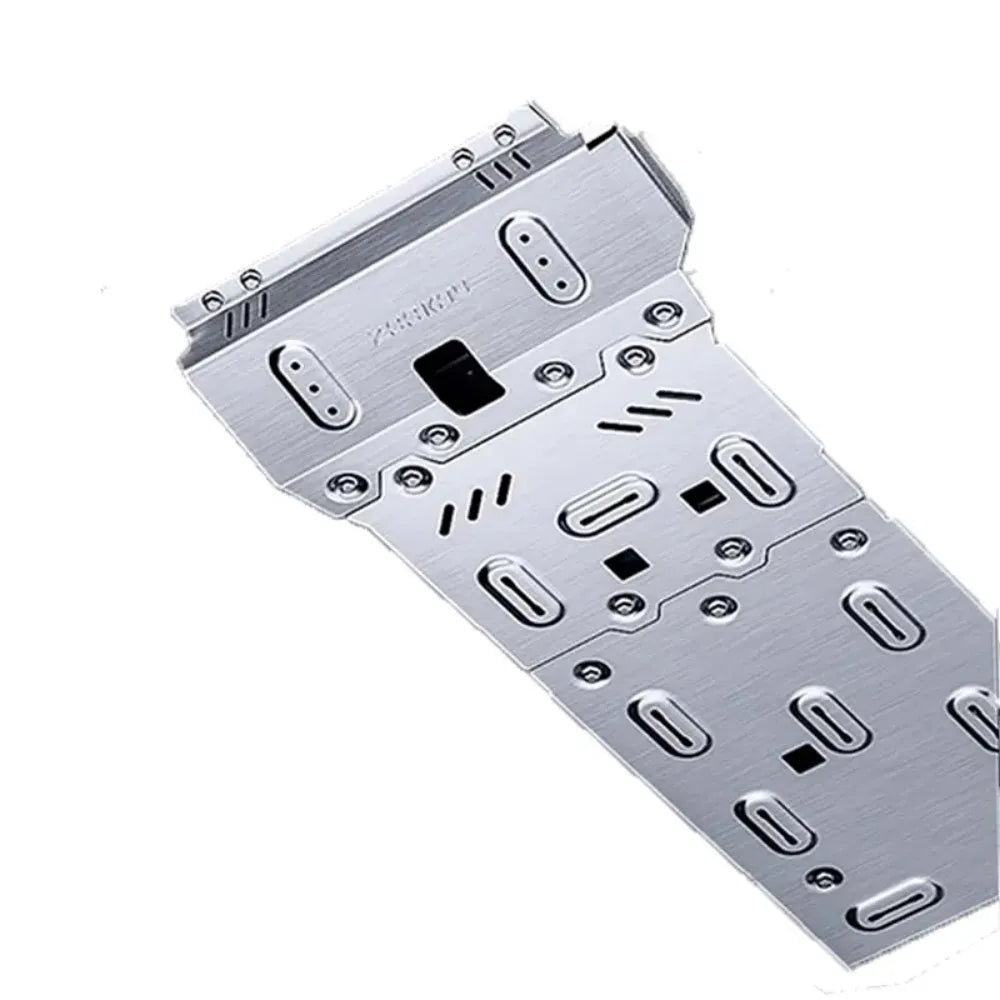

0.3 Inch Thick GWM Tank 300/400Hi4t/500Hi4t and Haval H9 Chassis Guard Plate

Description

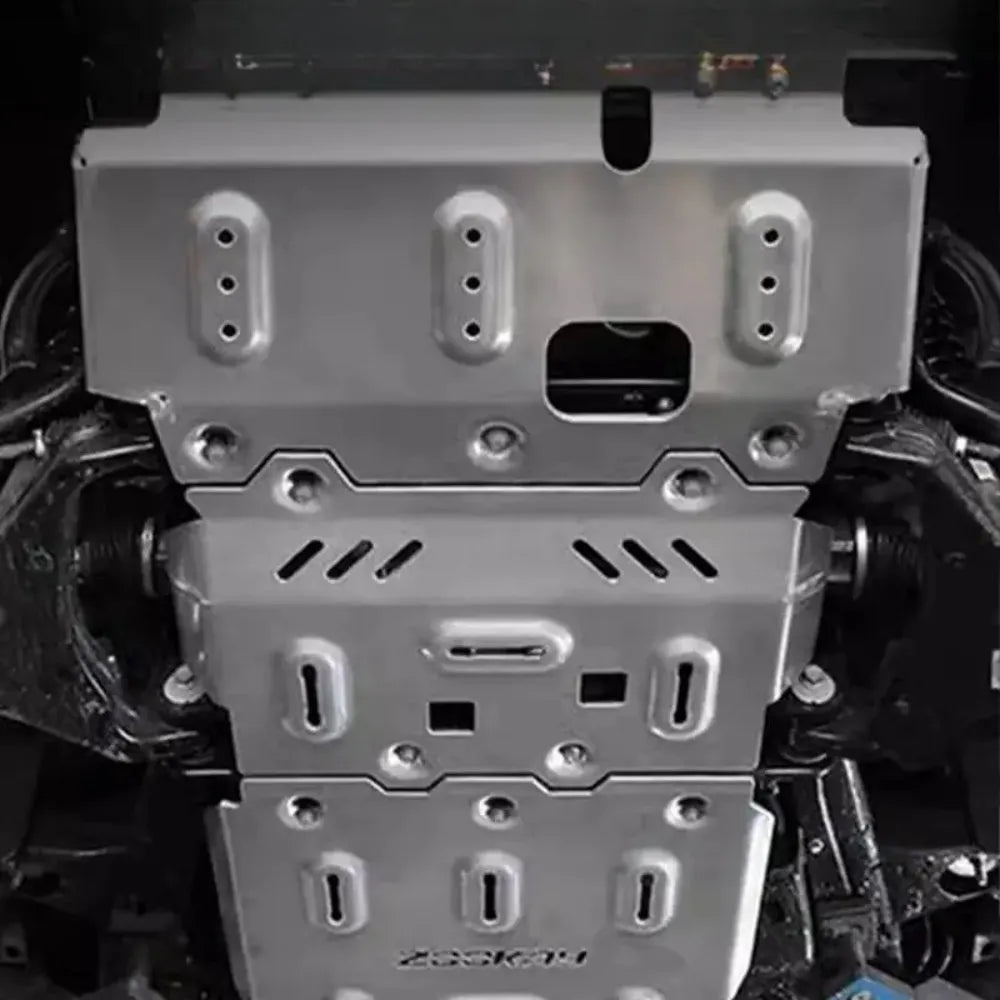

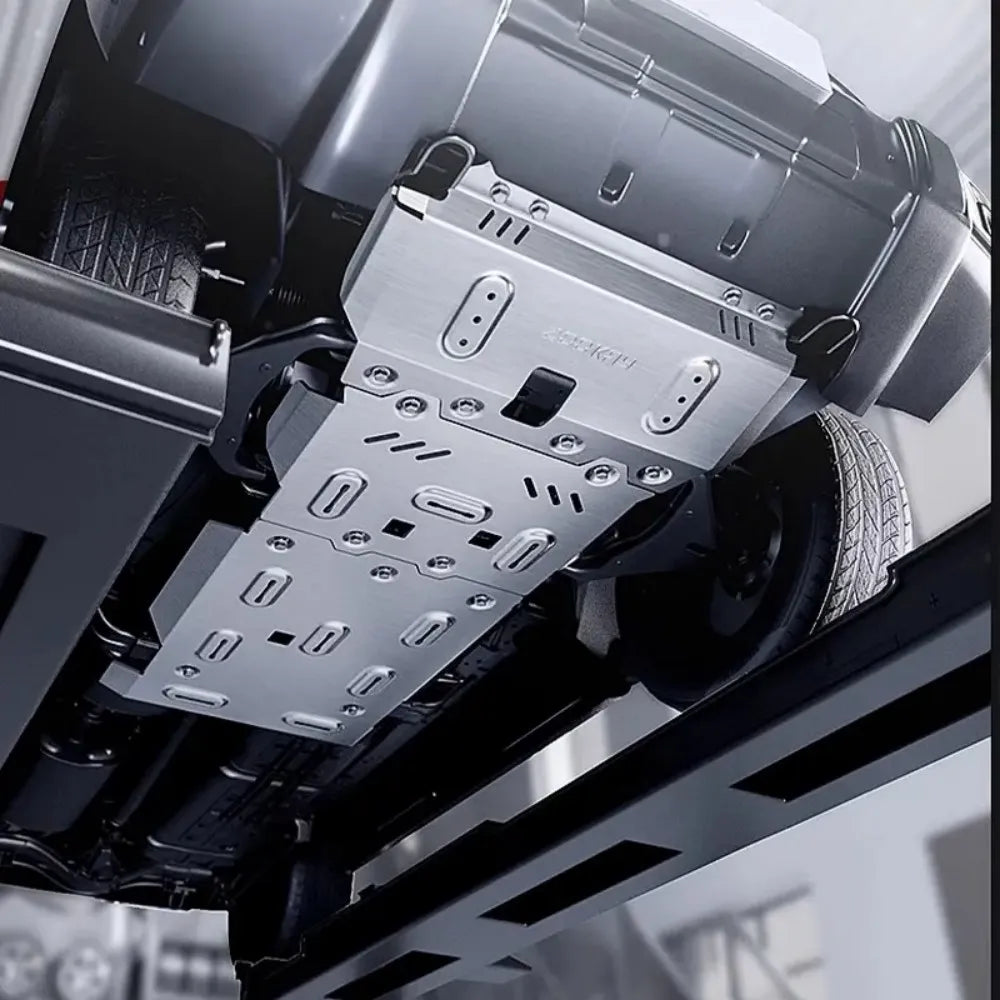

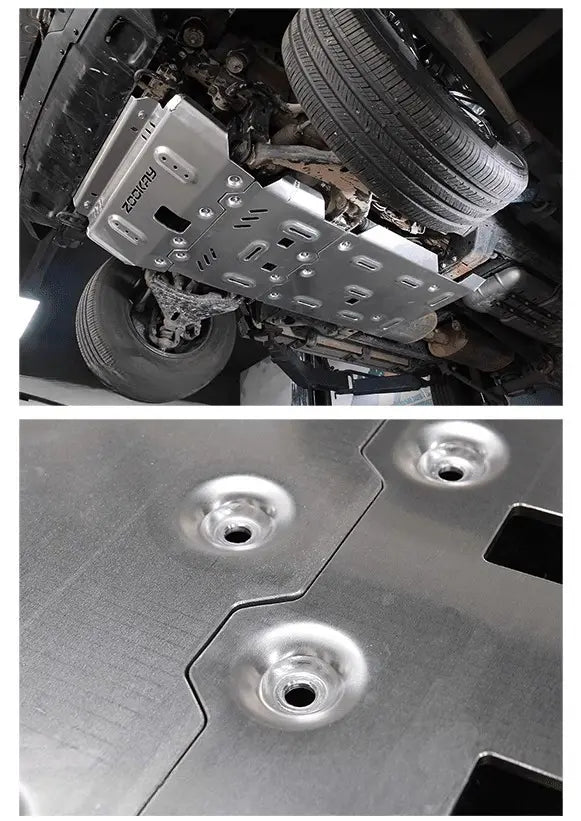

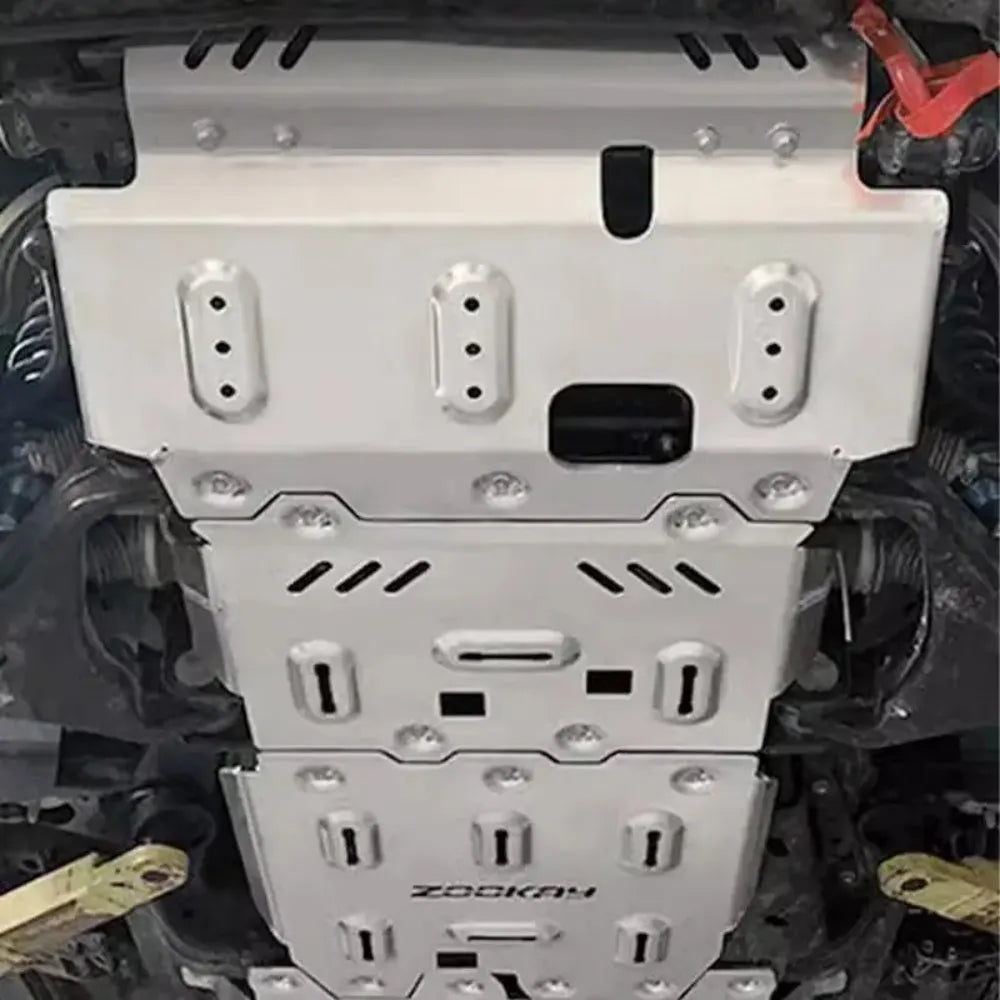

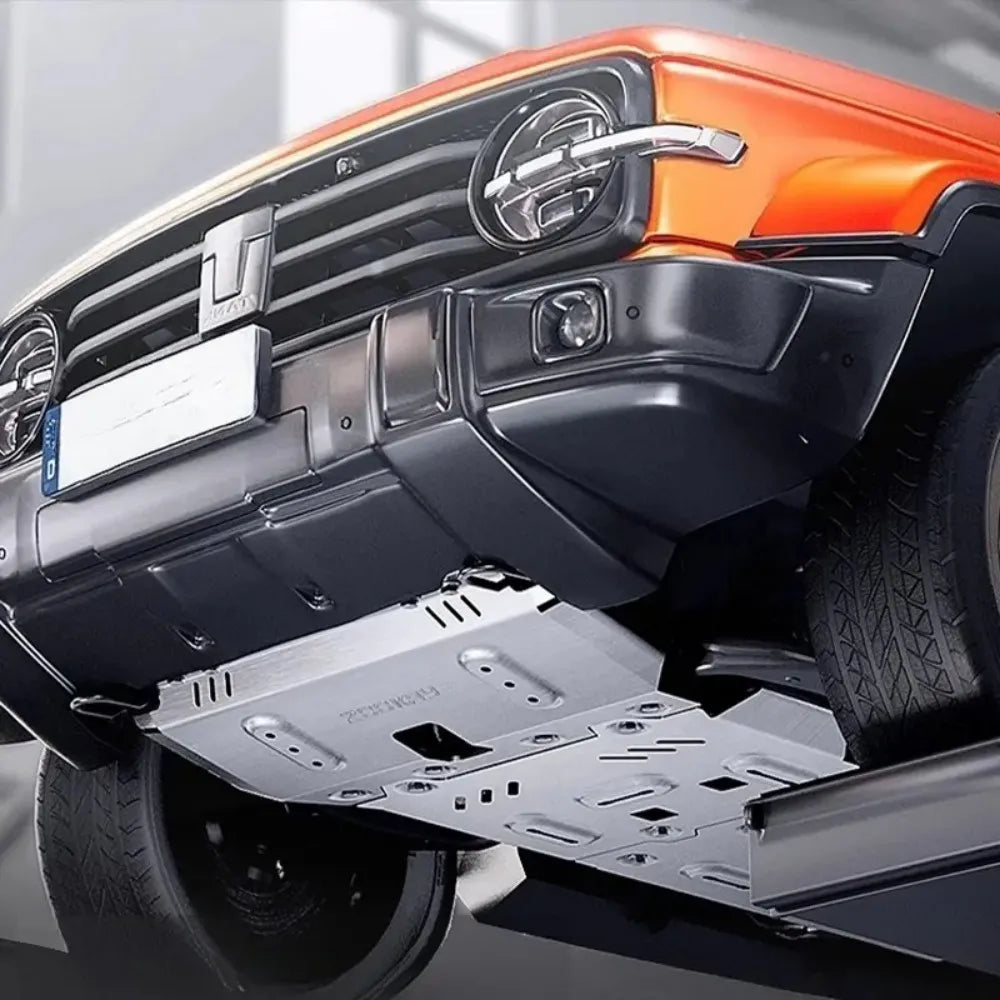

This skid plate kit is specifically designed for the Tank 300/400 hi4-t, Tank 500 hit-t, and Haval H9 (2024-2025 models). Made from high-strength aluminum-magnesium alloy, it offers superior durability and lightweight performance. The kit includes plates for the radiator, engine, transmission, transfer case, and fuel tank, providing comprehensive protection for critical components against rough off-road terrain. Precision craftsmanship and innovative design ensure a perfect fit to the vehicle’s chassis, delivering complete off-road protection.

Includes

• 1Pcs Radiator skid plate
• 1Pcs Engine skid plate
• 1Pcs Transmission skid plate
• 1Pcs Transfer case skid plate
• 1Pcs Fuel tank skid plate (optional)

Installation Steps:

1. Prepare the Vehicle:
   Park the vehicle on a flat surface. Use a jack to lift the vehicle and secure it with jack stands or use a lift for easier access to the undercarriage.

2. Remove Factory Shields (if applicable):
   If the vehicle has factory-installed skid plates, remove them using a socket wrench. Keep the bolts, as some may be reused.

3. Install the Radiator Skid Plate:
   Position the radiator skid plate in place, aligning it with the mounting points. Secure it with the provided bolts or reused factory bolts. Tighten using a socket wrench.

4. Install the Engine Skid Plate:
   Align the engine skid plate under the engine area. Attach it to the mounting points using the provided hardware. Ensure it is level and tighten bolts securely.

5. Install the Transmission Skid Plate:
   Position the transmission skid plate and align it with the mounting holes. Secure with bolts and tighten evenly.

6. Install the Transfer Case Skid Plate:
   Place the transfer case skid plate under the transfer case. Attach it to the pre-drilled holes, ensuring proper alignment. Use a torque wrench to tighten the bolts to the manufacturer’s recommended specifications.

7. Install the Fuel Tank Skid Plate:
   Carefully align the fuel tank skid plate under the fuel tank. Ensure it does not interfere with any fuel lines or components. Secure it with the provided bolts and tighten properly.

8. Check All Connections:
   Inspect each skid plate to ensure all bolts are securely tightened. Use a torque wrench to double-check bolt torque, following recommended specs.

9. Lower the Vehicle:
   Carefully lower the vehicle from the jack stands or lift, ensuring all tools are removed from underneath.

10. Final Inspection:
    Drive the vehicle slowly and listen for any unusual noises. Recheck bolts after the first off-road use to ensure they remain secure.

Note: Professional installation is recommended if you are unfamiliar with undercarriage work. Always wear safety gear during installation.
