GWM Cannon Tow Bar & Trailer Wiring Kit | 7/13-Pin with Decoder

Name: GWM Cannon Tow Bar & Trailer Wiring Kit | 7/13-Pin with Decoder
Brand: EVparts4x4
Price: 210.0 USD
Availability: InStock

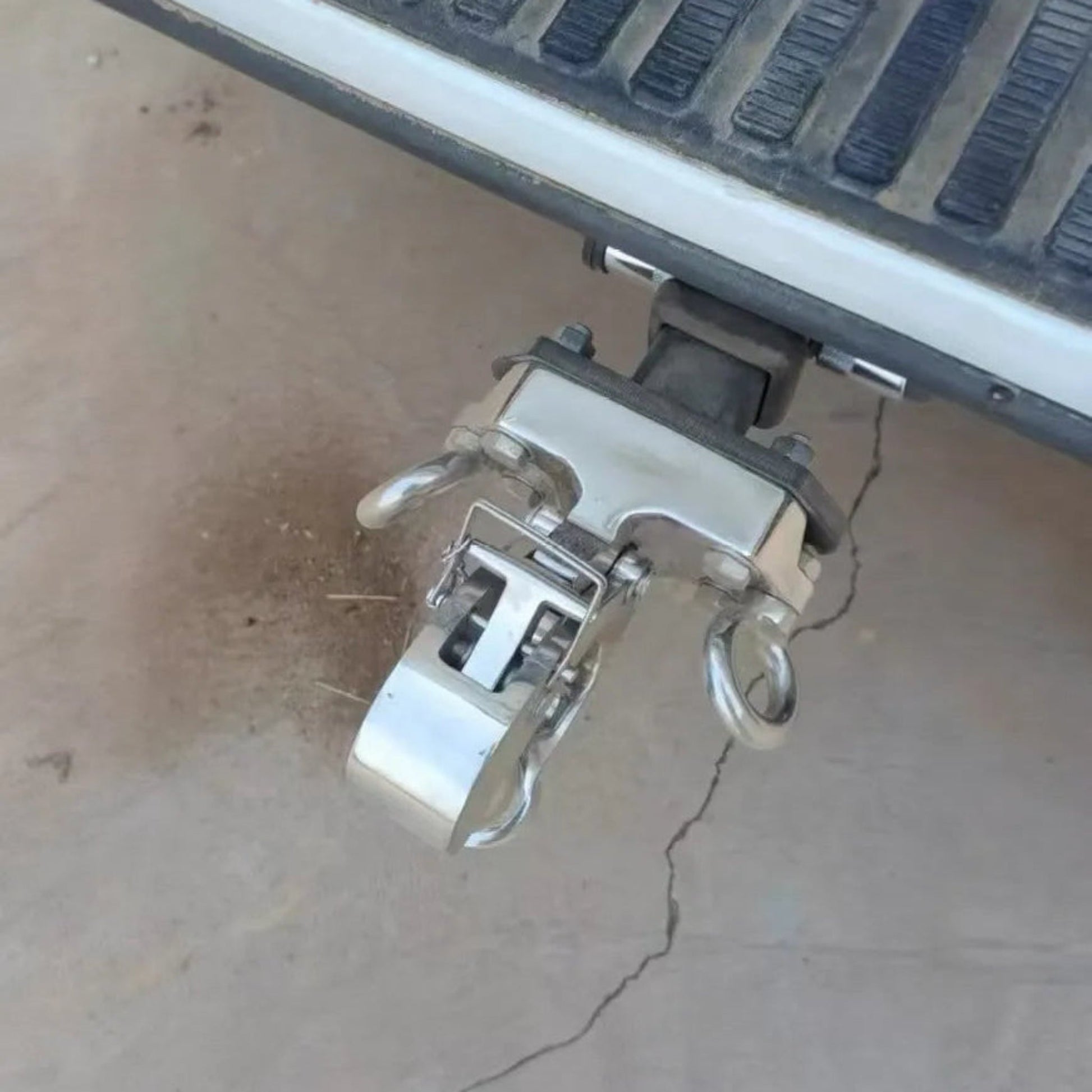

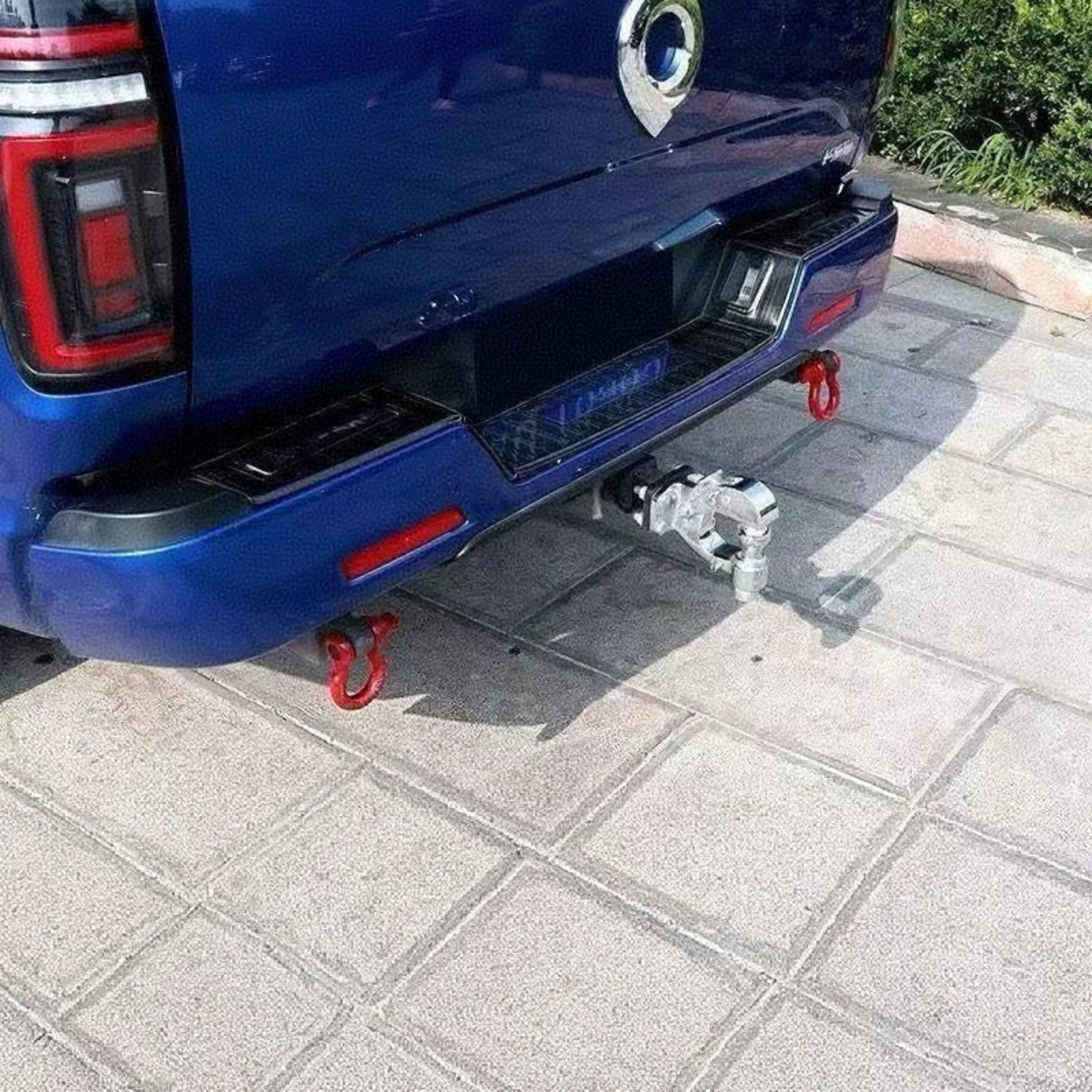

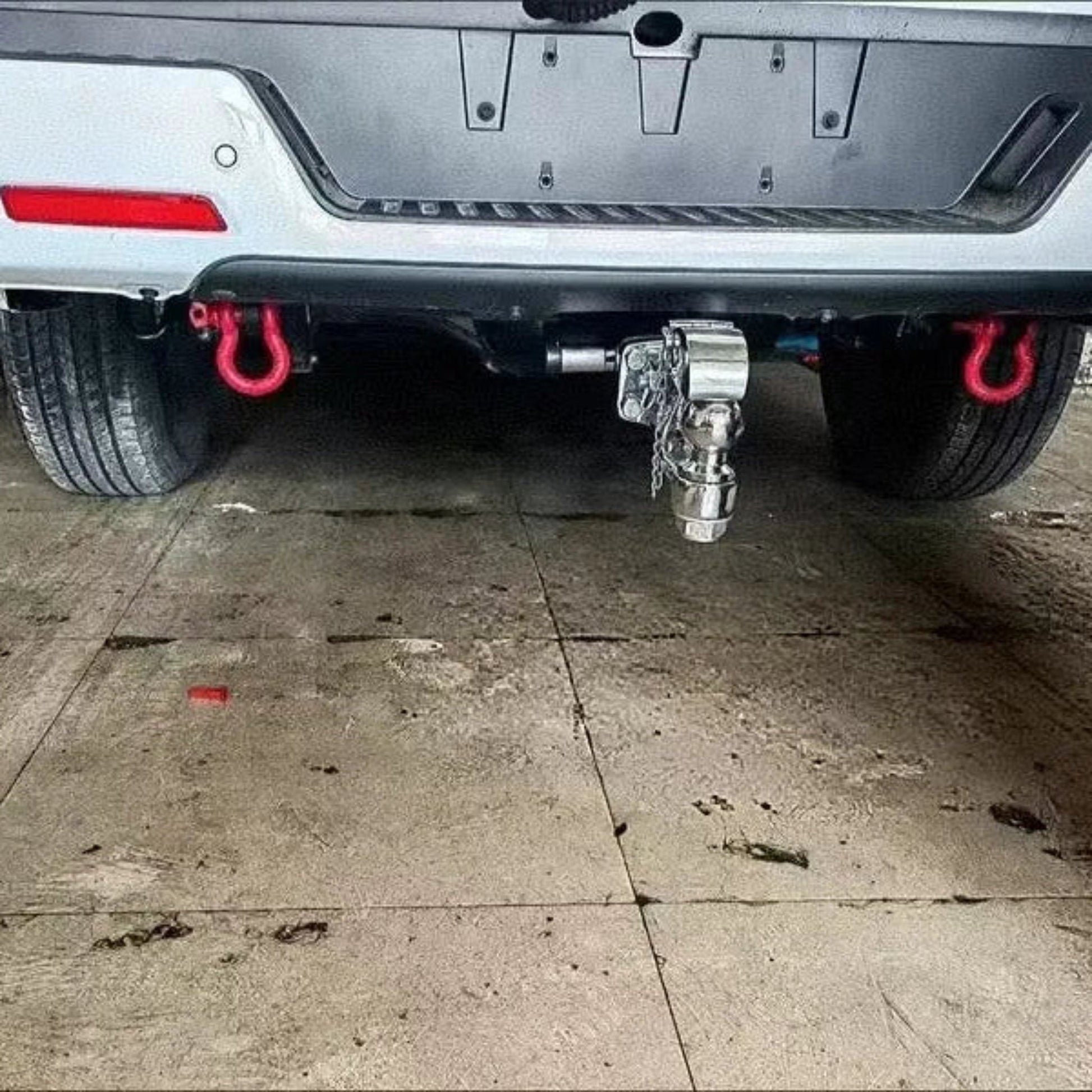

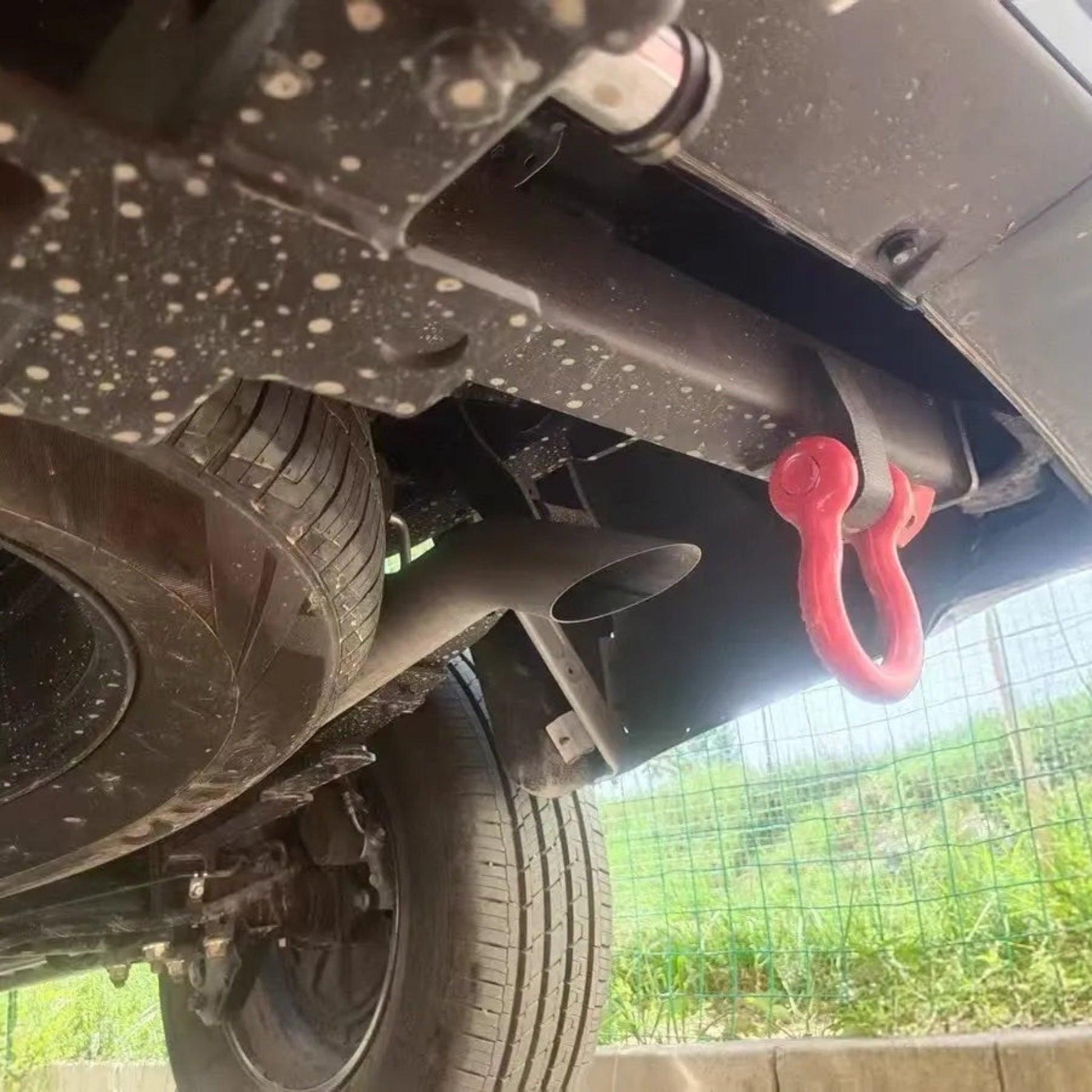

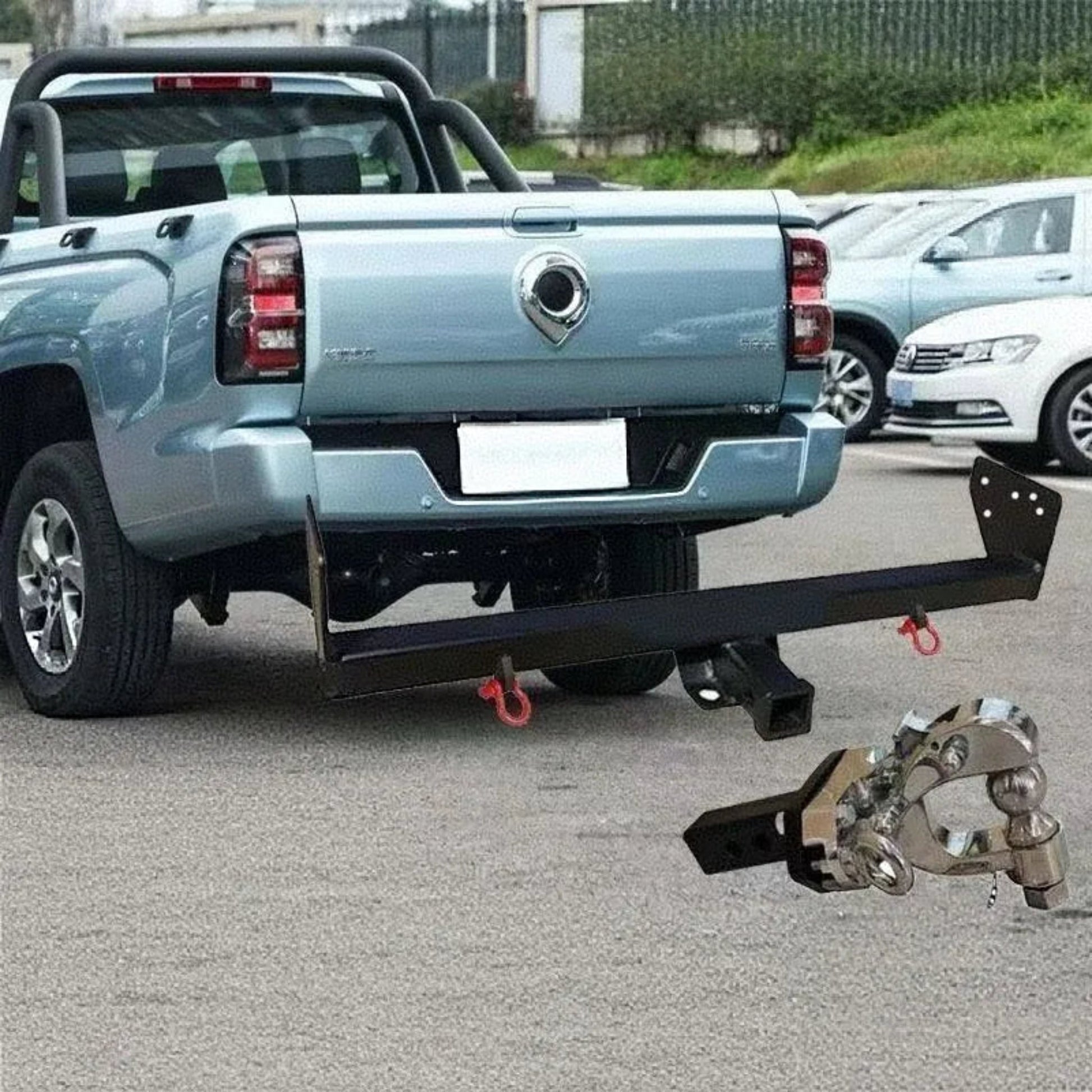

GWM Cannon Trailer Hitch (trailer hitch) Enhanced trailer bar [send red ring]

GWM Cannon Tow Bar & Trailer Wiring Kit | 7/13-Pin with Decoder

Precision Fit Guaranteed

Every part verified against OEM vehicle data. Guaranteed to fit your vehicle — or we cover return shipping and issue a full refund.

Engineered for EV Platforms

Parts designed for BYD, Tesla, MG, GWM, and KIA — OEM-spec quality, tested for EV electrical systems and caliper compatibility.

Your Parts, Your Terms

Split payments with Zip, Afterpay, or Shop Pay. Zero-interest options — approved in seconds at checkout, no forms required.

Easy Install, Perfect Fit

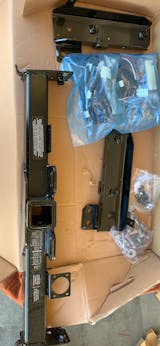

I was able to install this hitch in my garage in about an hour. All the bolt holes lined up exactly with the factory mounting points on my GWM Cannon, so there was no drilling or modifications needed. The black powder-coat finish looks great and blends seamlessly with the truck's frame. It's a clean, factory-installed look. A fantastic product for anyone who wants to add a hitch without the hassle.

Rock-Solid Towing Performance!

"I needed a reliable hitch for my GWM Cannon to pull a small camper, and this one has been perfect. The build quality is exceptional—it's heavy-duty and feels incredibly strong. I've had no issues pulling a full load, and it gives me complete peace of mind on the highway. It's a professional-grade hitch that fits like a glove. Highly recommend it for anyone who needs serious towing power from their Cannon."

Perfect Fit Base Plate for My GWM POER!

This base plate is solid and fits my GWM POER (Great Wall Cannon) perfectly! I used it during a two-week, 3500-mile journey—hitched and unhitched it from our RV several times without any issues. The fit was precise, the structure is strong, and it held up great under long-distance towing. Excellent quality and durability. Highly recommend it for anyone setting up their POER for flat towing!

Great Fit with Plug & Play Wiring – Worth Every Penny!

The kit didn’t come with a manual, but I found a great installation video on YouTube. It took me around 2 hours to install, taking my time. I’m impressed with the fit and finish—it looks factory-installed. The plug & play wiring harness includes both 7-pin and 4-pin connectors, plus a vehicle-specific module and a brake controller adapter. Compared to typical aftermarket options, this is an excellent value!

Easy Installation with OEM Holes

Installed directly using the factory screw holes. Great craftsmanship and fits perfectly. Highly recommended for anyone upgrading their tow hook

Features & Benefits

Complete Towing Setup: Tow bar and wiring kit on one page. Buy what you need, or both for a full install.

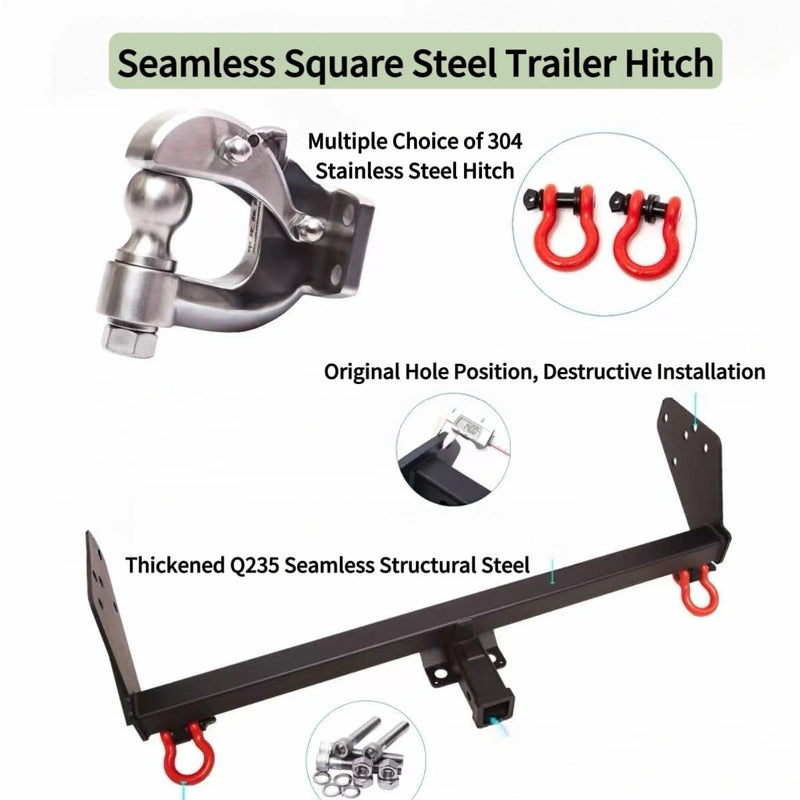

Bolt-On Tow Bar: Mounts to factory-preset chassis holes on Cannon and KingKong. No drilling, no cutting, 45-60 minute install.

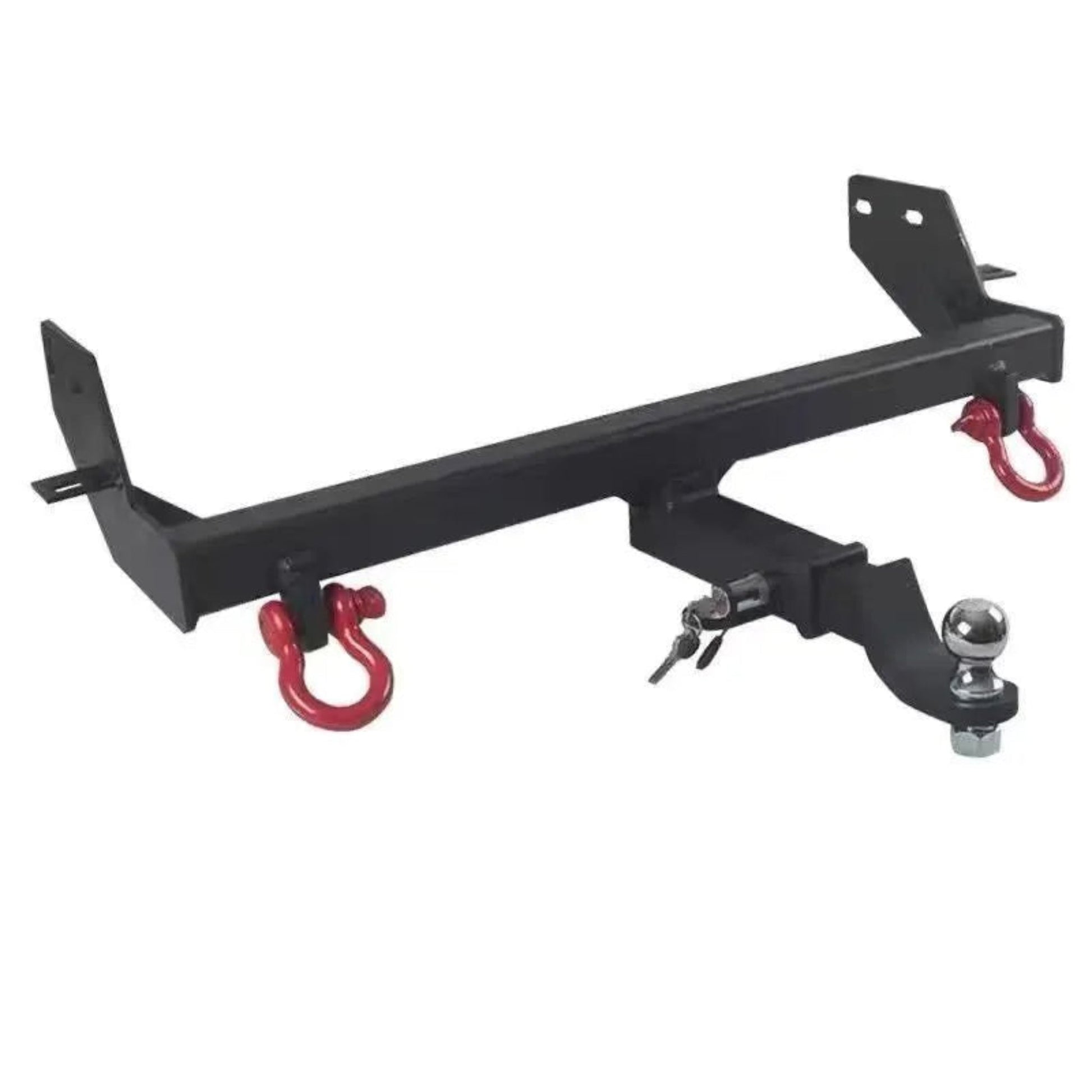

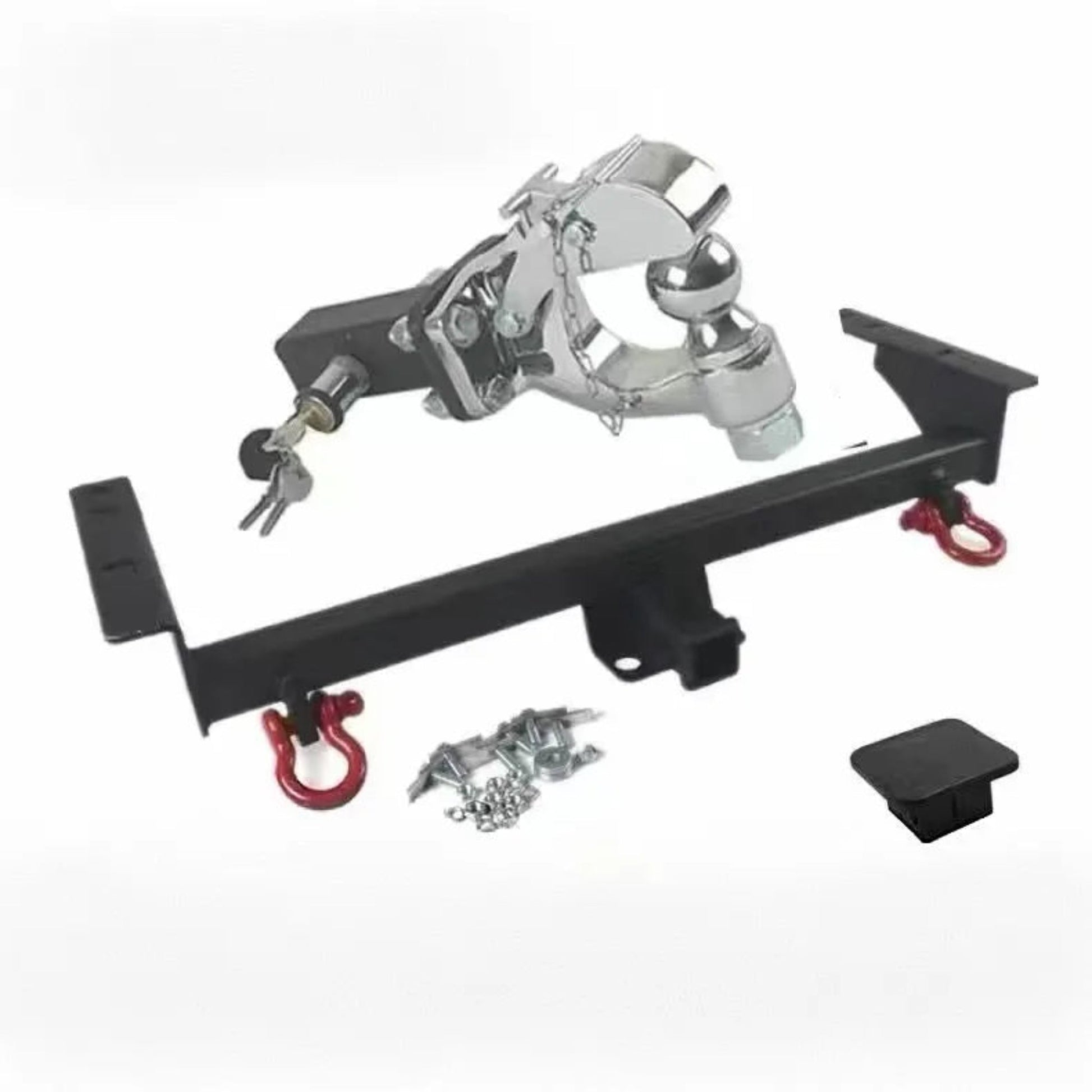

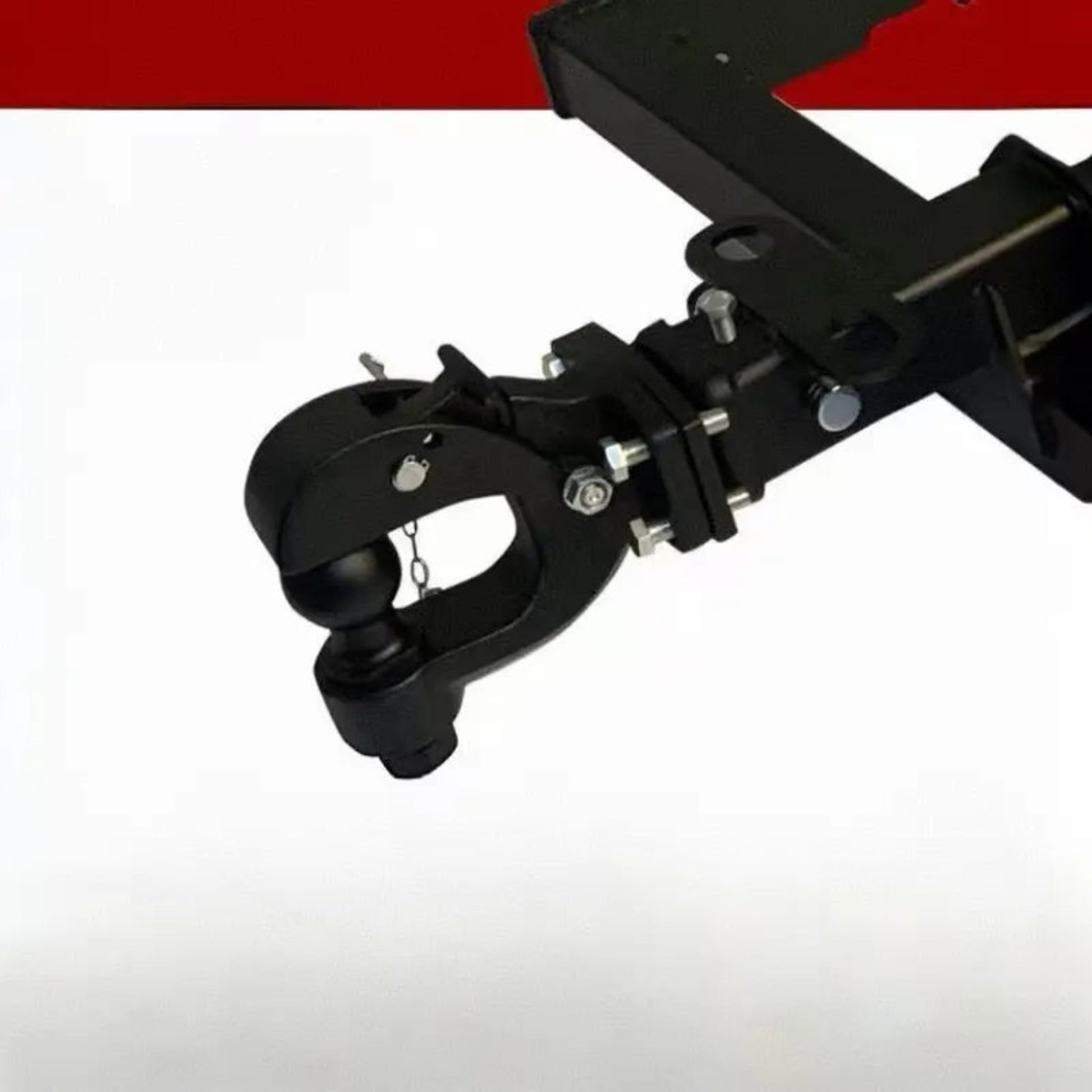

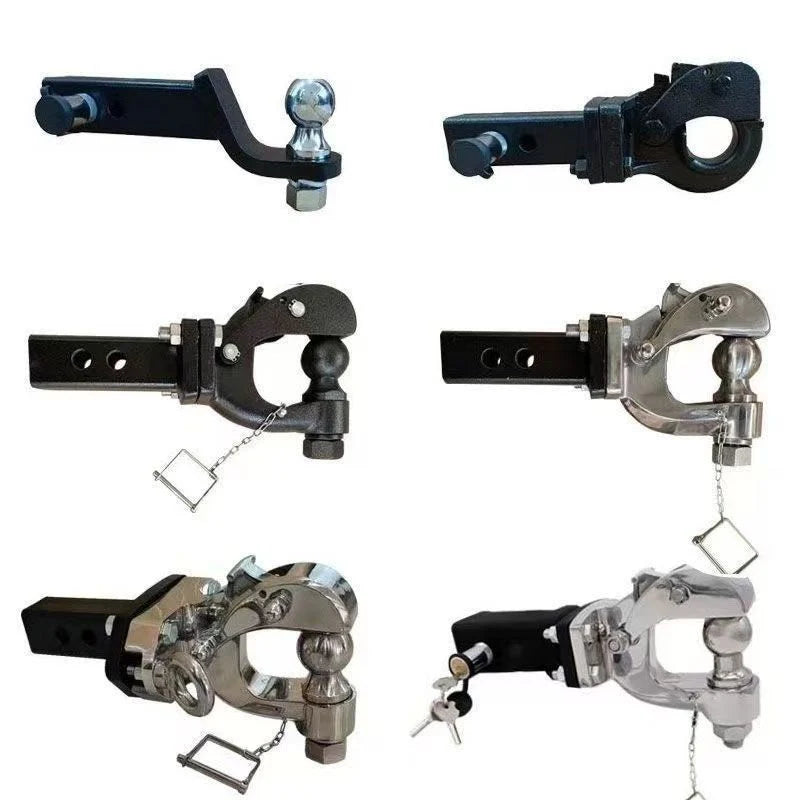

Tiger's Beak Hook Options: Classic, black or electroplated finishes, plus towing arm and red recovery ring packages.
Decoder Protects Your Computer: The wiring kit's decoder module isolates the trailer's electrical load from the vehicle BCM, preventing fault codes and computer damage.
Wiring Diagram Included: Clear tail-light connection diagram ships with every kit, so you or your electrician know exactly where each lead goes.
Direct Battery Feed: Heavy-gauge red lead runs to the battery, giving 13-pin caravans full power for fridges and house-battery charging.
Every Plug Standard: European 7-pin and 13-pin, American 4-pin and 7-pin. 13-pin adds reverse-light and constant-power.
CE Certified Wiring: Built to European electrical standards with Certificate of Compliance.

What's Included

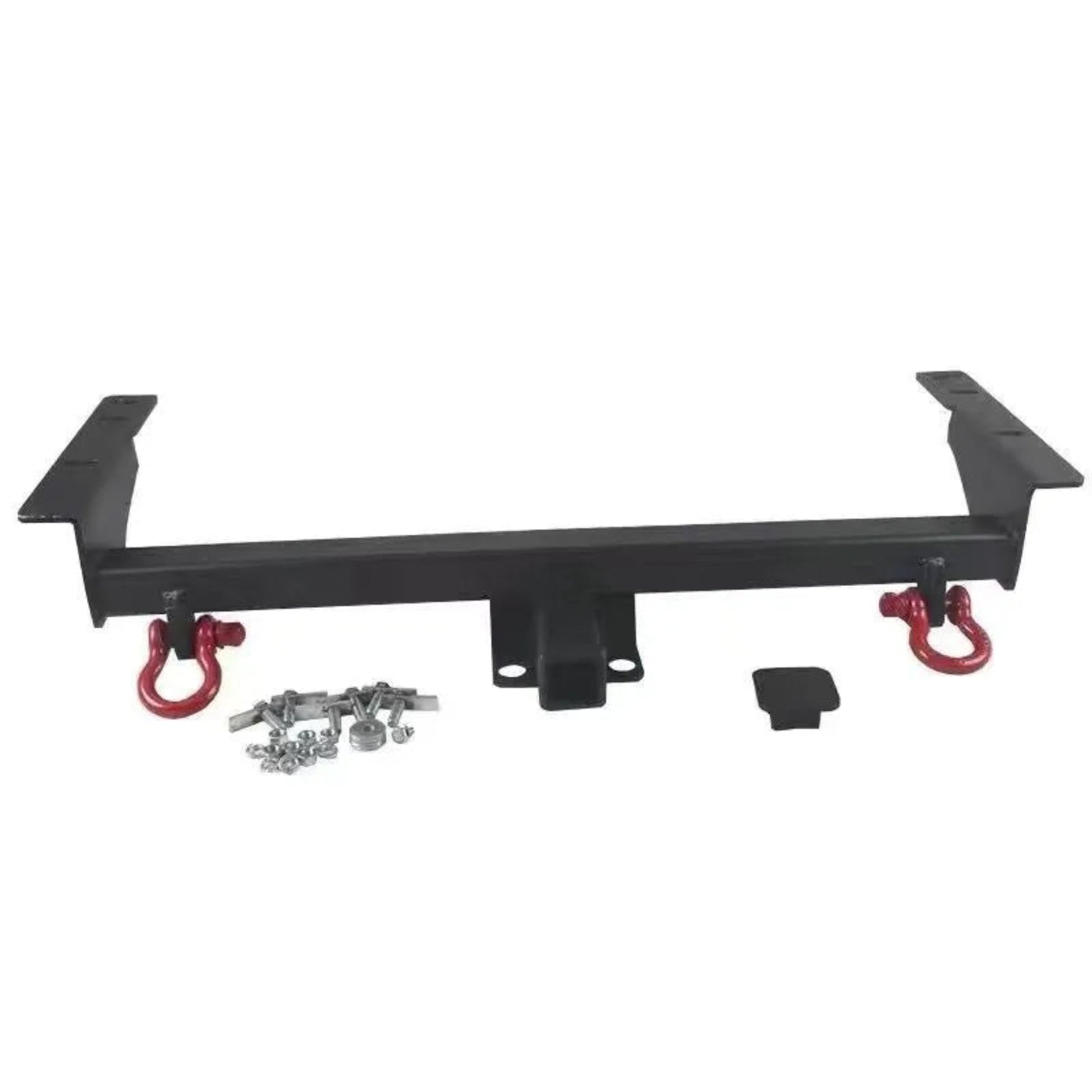

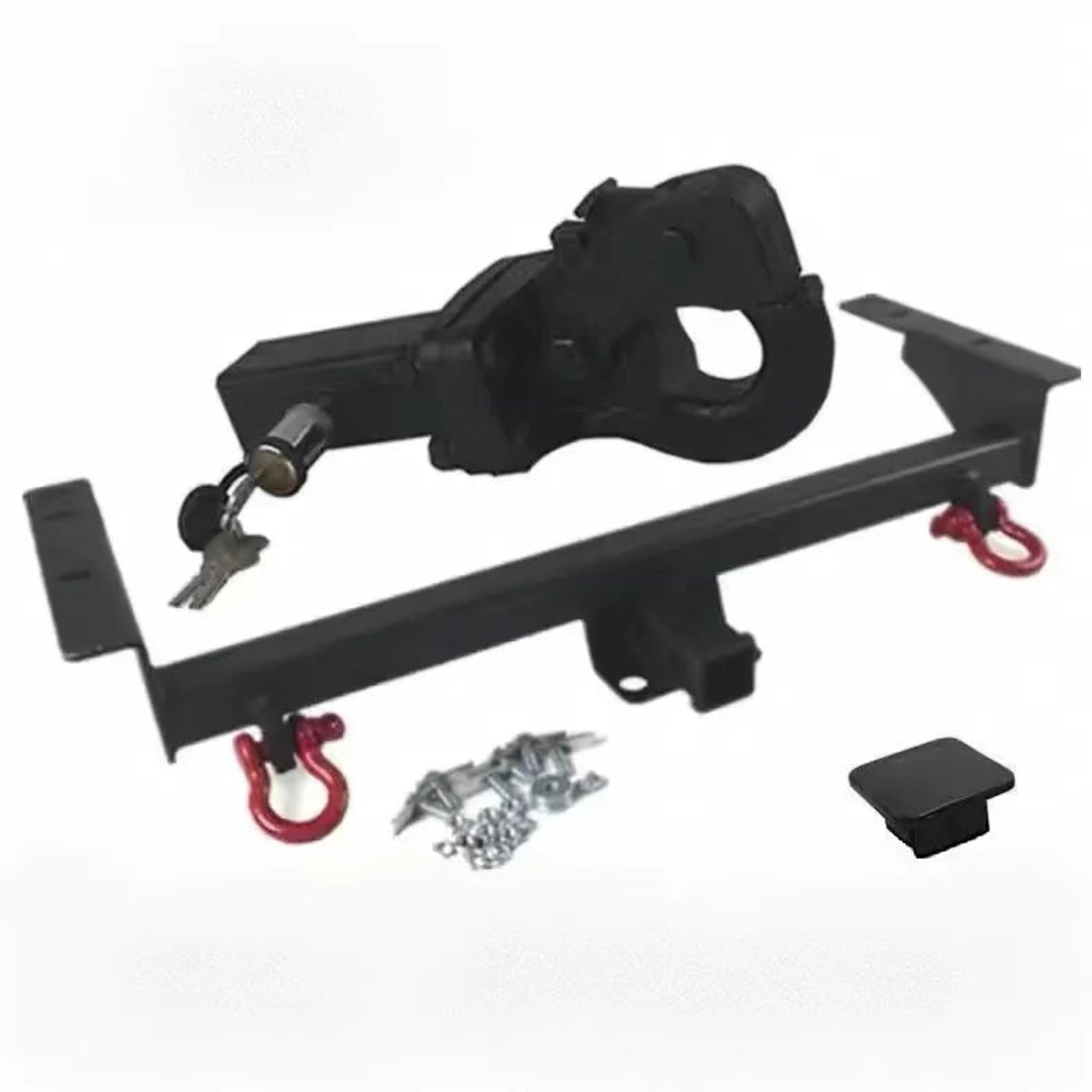

TOW BAR variants: 1x enhanced trailer bar in your selected configuration (red recovery ring / towing arm / classic, black or electroplated Tiger's Beak hook), mounting bolts, installation guide.
WIRING KIT variants: 1x vehicle-specific harness with connectors, 1x decoder module, 1x heavy-gauge battery power lead, 1x trailer socket (4/7/13-pin as selected), cable ties, tail-light wiring diagram, CE Certificate of Compliance.

Tow bar and wiring kit are separate variants. Order one or both.

Product Gallery

GWM Cannon Tow Bar & Trailer Wiring Kit | 7/13-Pin with Decoder Detail

Confirmed compatible vehicles for this part. Use the vehicle selector above to verify fitment for your specific car.

Year Range	Brand	Model
2021-2026	GWM	Cannon
2022-2026	GWM	KingKong

⚠ Compatibility note

Fitment confirmed for GWM Cannon (2021-2026) and GWM KingKong (2022-2026). For other GWM models or specific variant compatibility, please send your VIN or vehicle details to support@evparts4x4.com — we'll confirm fitment within 24 hours.

Not sure about compatibility? Contact us — we'll confirm within 24 hours.

Total time

Tow bar 45-60 min · Wiring kit 1-2 hrs (electrical work)

Drilling required

No. Tow bar bolts to factory holes; wiring kit connects into tail-light circuit

Warranty

Tow bar: yes, bolt-on. Wiring: decoder protects vehicle computer; pro fitment recommended

Locate the factory mounting points on the chassis rails; remove the rear bumper trim cover if needed.
Lift the bar into position and align with the pre-drilled frame holes.
Insert the supplied high-tensile bolts and washers; hand-tighten to check alignment.
Torque all bolts to spec, chassis side first.
Fit your chosen hook or tow ball; secure with pins and safety clips.
Check the hook does not obstruct the tailgate or rear camera.

Yes. Both the tow bar and wiring kit are engineered for the GWM Cannon (2021-2026) and KingKong (2022-2026), including export models such as the POER. The tow bar uses factory chassis holes. For the Cannon-X or if you're unsure, send your VIN to support@evparts4x4.com and we'll confirm within 24 hours.

The tow bar is the metal hitch only - it has no electrics. If you want your trailer's brake lights, indicators and tail lights to work, you need the wiring kit. Already have working trailer wiring? Order just the tow bar. Starting from scratch? Order both.

The kit connects into your Cannon's tail-light circuit to pick up the brake, indicator and tail-light signals, following the wiring diagram included in the box. A decoder module then generates a separate, isolated power feed for the trailer. Because the install involves the factory tail-light wiring, we recommend an auto electrician or a confident DIYer.

It's the most important safety part. Modern trucks monitor their light circuits with a body computer (BCM). Powering a trailer straight off those circuits can trigger fault codes or damage the computer. The decoder reads the light signals and creates a separate, clean power feed for the trailer, so the trailer's electrical load never touches your truck's computer.

That's the main power lead. It runs from the trailer socket to your battery's positive terminal so the trailer draws power directly from the battery rather than the thin tail-light wiring. This is what lets a 13-pin caravan run a fridge, charge its house battery and power interior lights while driving. Fit the inline fuse at the battery end.

Match the kit to your trailer's plug. Count the pins on your trailer connector: 4 or 7 flat/round is the American standard; 7 or 13 round is the European standard. 13-pin adds a reverse-light signal and constant 'always-on' power for caravans. Not sure? Send us a photo of your trailer plug and we'll tell you which kit to order.

Yes, if you're comfortable working with vehicle wiring. The kit includes a wiring diagram and decoder. Disconnect the battery negative first, follow the diagram, and test every light function before towing. If you'd rather not, any auto electrician can fit it in about an hour - it's a routine job.

No. The tow bar bolts into factory-preset chassis holes, and the wiring kit connects into existing tail-light wiring. You may need to temporarily remove the rear bumper trim for access.

Yes. The wiring kit is built to European electrical standards and ships with a CE Certificate of Compliance. The tow bar itself is not ADR or E-mark type-approved - if your country requires a certified tow bar for registration, check local rules before ordering.

Select the 'Wiring Kit for GWM Cannon-X' variant and add your plug standard (4/7/13-pin) and VIN in the order notes. The Cannon-X wiring differs slightly, so we match the correct harness to your VIN before dispatch.

Use the vehicle selector at the top of this page to confirm fitment for your specific year, brand, and model. If your vehicle is not listed or you're unsure, contact us at support@evparts4x4.com with your VIN — we'll confirm compatibility within 24 hours. Our Guaranteed Fit policy means if a compatibility issue is on our end, we'll make it right.

Orders are processed and dispatched within 2-4 business days. Standard parts ship via Air Parcel and typically arrive in 10-15 business days; larger body parts ship via Sea Freight and take around 30-45 business days. Shipping is free on orders over $100. You'll receive a tracking number once your order ships, and can track it anytime here. Full details in our Shipping Policy.

Yes — we offer a 30-day return window from the delivery date, and we don't charge any restocking fees. If an item arrives damaged or isn't quite right on our end, we'll arrange a replacement or full refund and cover the return shipping. For the complete terms, please see our Return & Refund Policy or start a return via our RMA page.

We don't provide installation directly, but most of our parts are designed for straightforward DIY installation — the step-by-step guide is in the Installation Guide tab above. For complex parts (e.g. brakes, suspension, electrical systems), we recommend having a qualified mechanic perform the installation. If you have technical questions during installation, our support team is happy to help at support@evparts4x4.com.
