Gwm Cannon Trunk Roller Shutter Lid Remote Control Lock

Description

Remote control unlocking, convenient and quick: Say goodbye to getting out of the car! Sitting in the car, just a click of the remote control, the tailgate is instantly opened or locked, convenient for you to load or unload goods at any time, greatly improving efficiency!

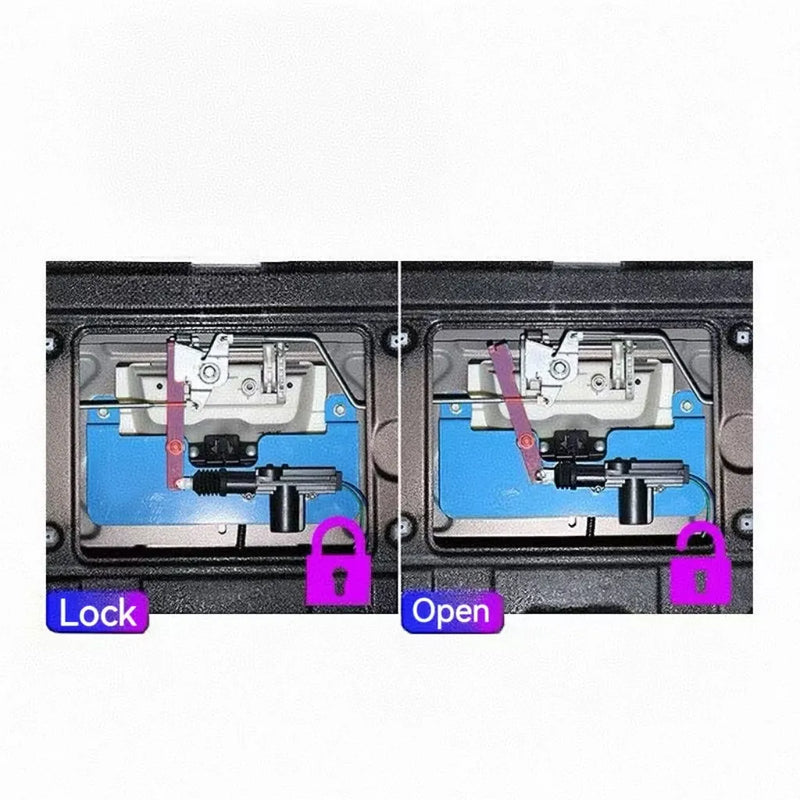

Linkage with the original car, intelligent synchronization: not only the remote control can be controlled, but also realize intelligent linkage with the original car door lock! When you lock the car, the tailgate is automatically locked, and when you unlock it, the tailgate is automatically unlocked, which is truly senseless operation, safe and worry-free!

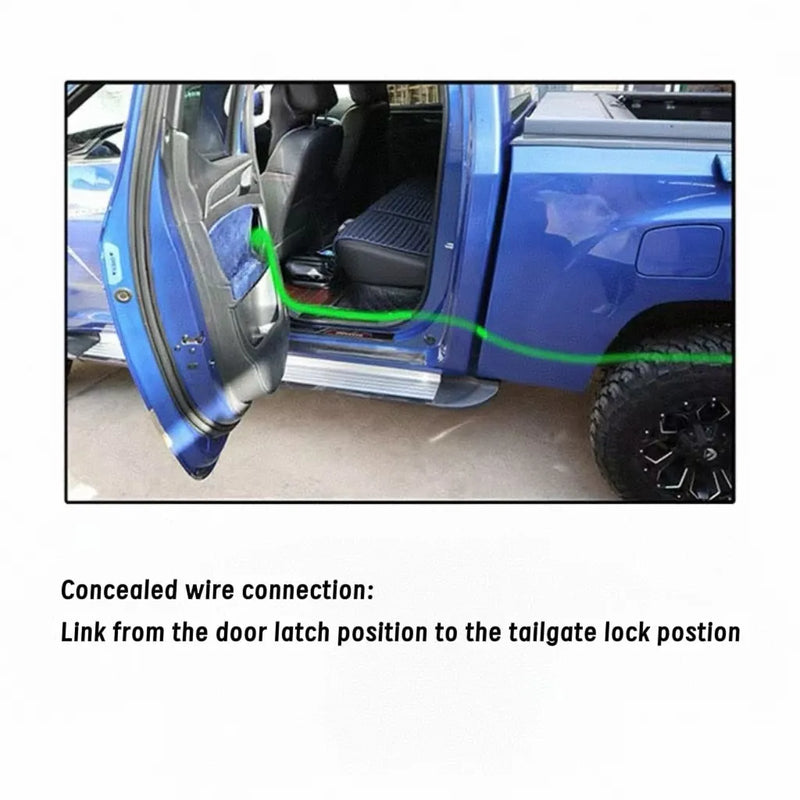

Hidden wire Installation: the use of hidden alignment design, perfectly integrated into the body structure, the wiring harness hidden not exposed, does not affect the original car beauty, keep your car neat and generous.
Guard the goods, safe and worry-free: strong locking, effectively prevent the tailgate from accidentally opening or theft, to provide an additional protection for your valuable goods, so that you can park without worry.
Sturdy and durable, quality assurance: Selected high-quality materials, sturdy structure, durable and reliable, adapt to all kinds of bad road conditions and weather, long-lasting companion for your car.

Includes(skus)

1.Gwm Steed Electric locks

2.Gwm Wingle-7 Electric locks

3.23 Gwm Cannon-L Electric locks

4.20-22 Gwm Cannon Electric locks

5.Gwm KingKong Electric locks

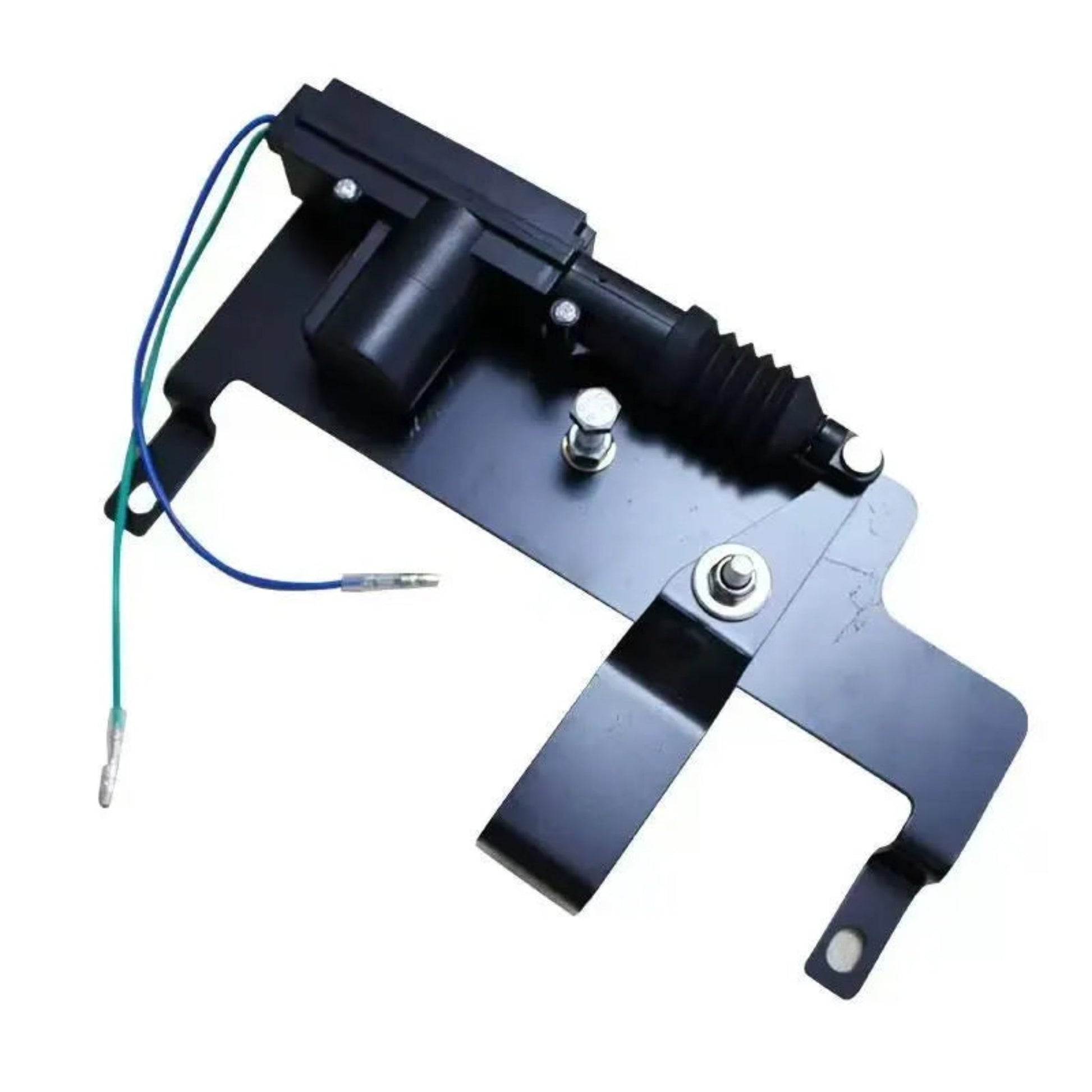

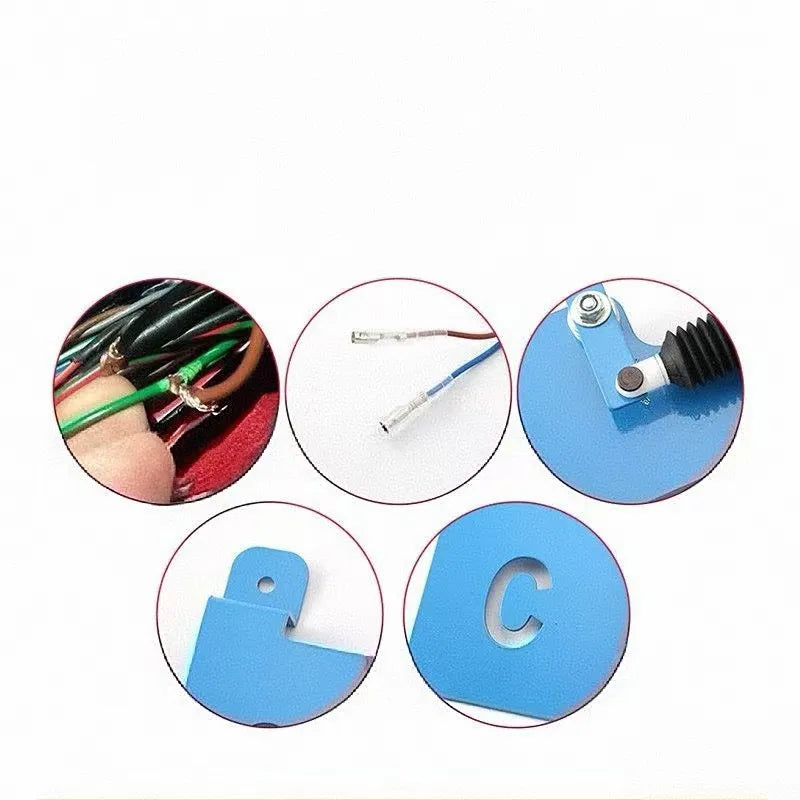

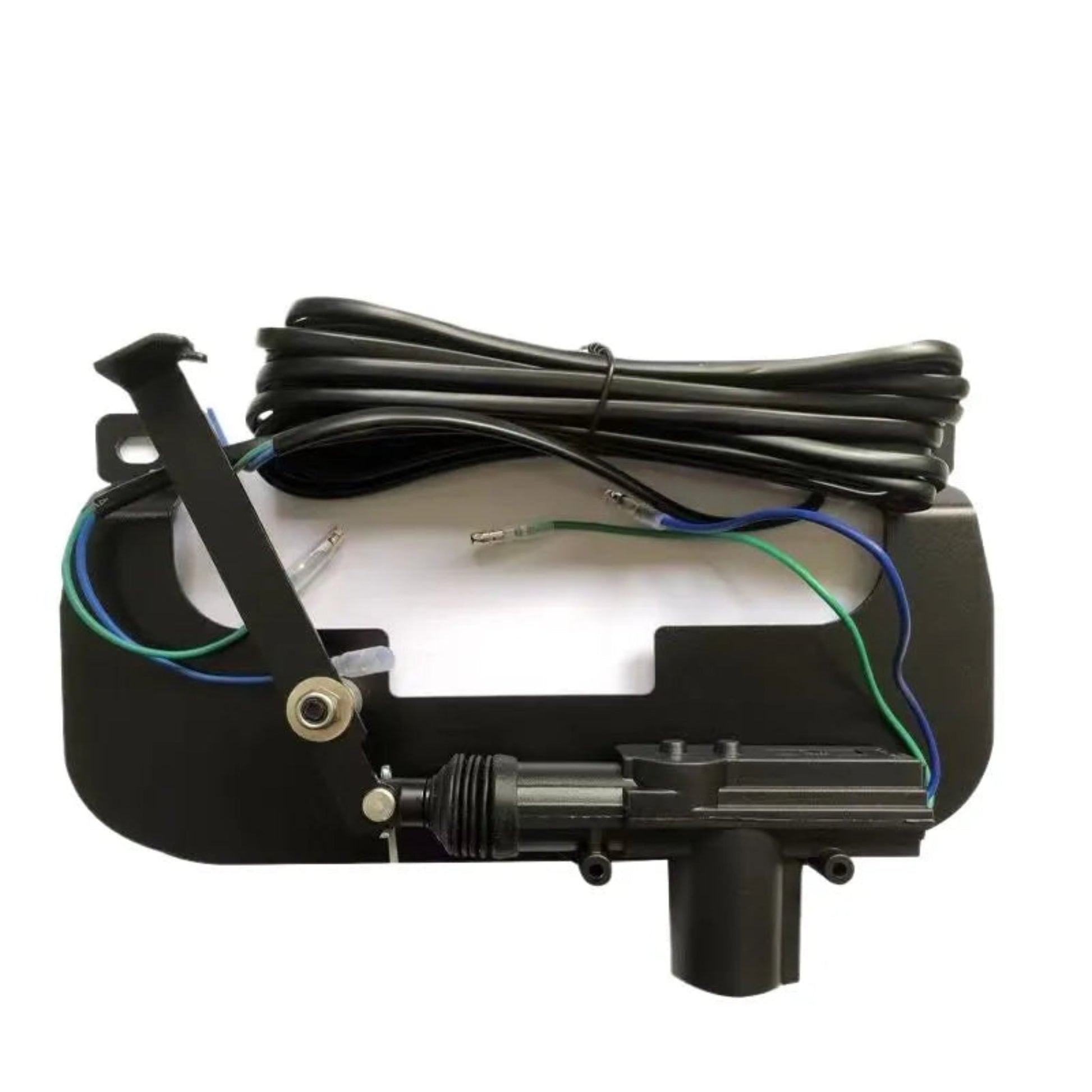

6.Electric lock body, connecting wiring harness, mounting screw kit, and these installation instructions.

Installation steps

1.Preparation before installation
1.1 Check the accessories: Please check whether all the following components are included in the package: the main body of the electric lock, the connecting wiring harness, the mounting screw package, and this installation manual.
1.2 Prepare tools: Phillips screwdriver, wire stripper, insulating tape.
1.3 Disconnect the power supply: To ensure safety, please be sure to disconnect the power supply of the vehicle before installation (it is recommended to remove the negative terminal of the battery).
2. Installation Steps
2.1 Remove the original door lock: carefully remove the inner door trim panel. Locate the original door lock position and disconnect the connecting harness and tie rods. Unscrew the fixing screws and remove the original door lock.

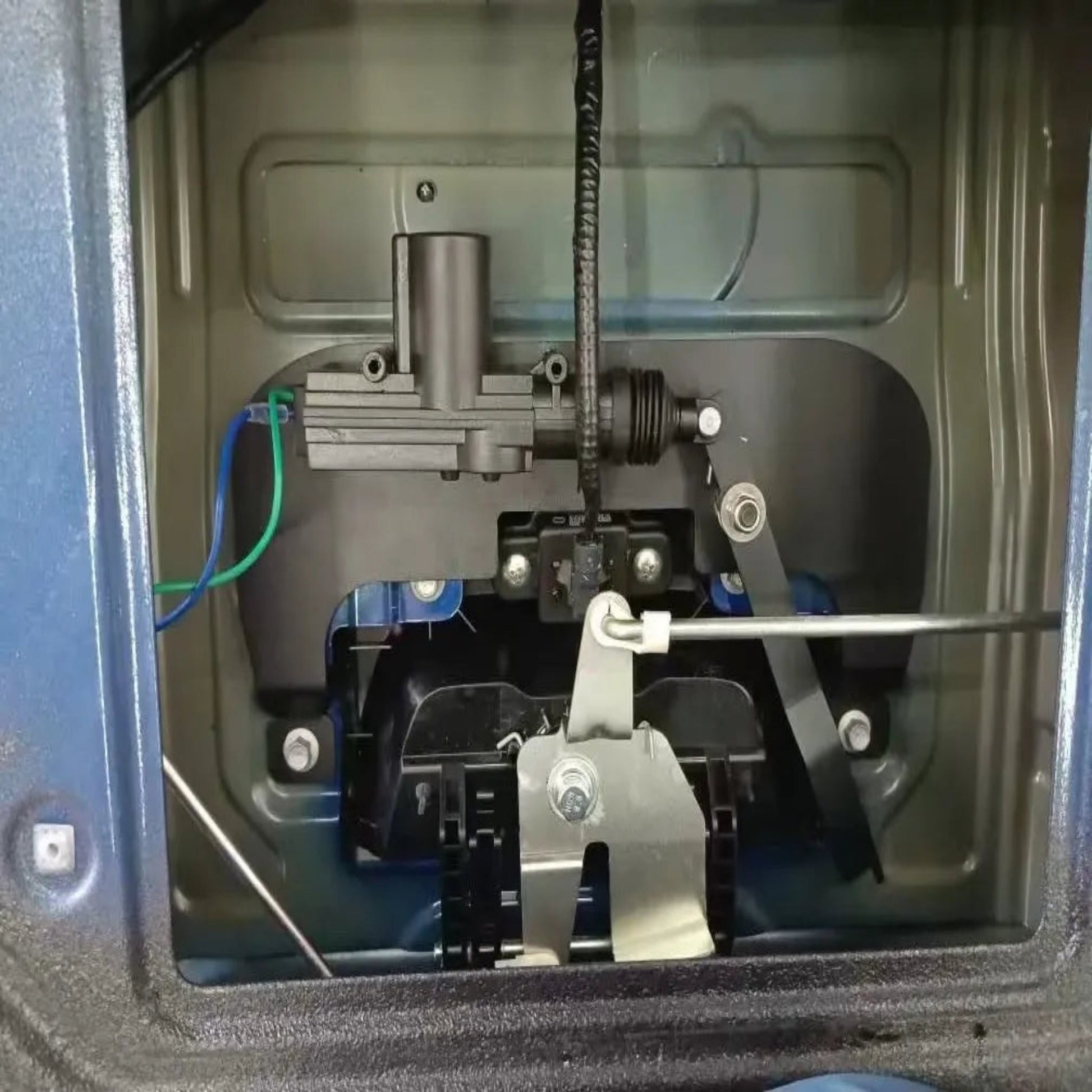

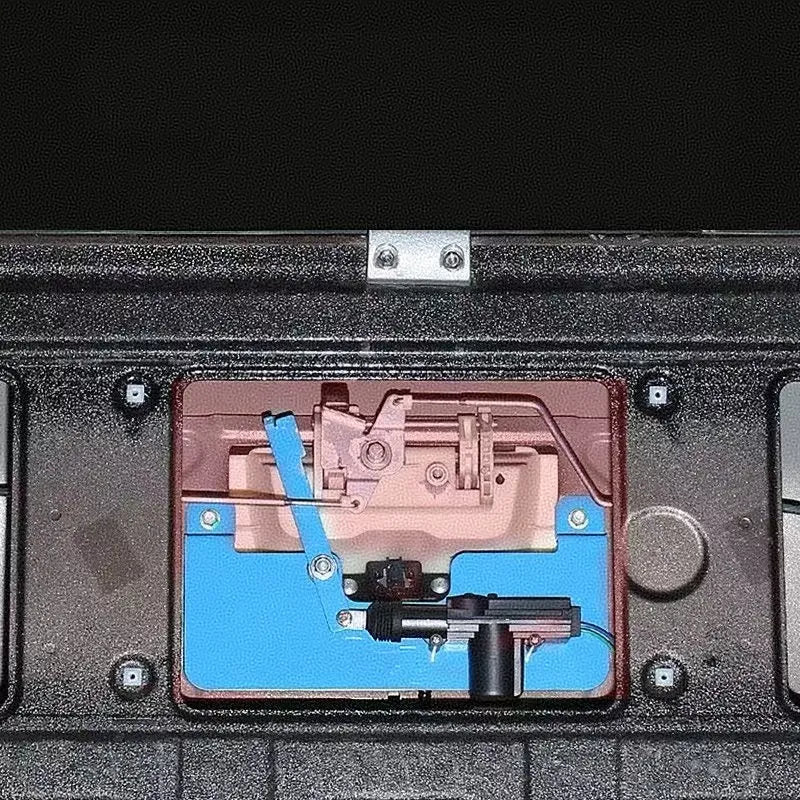

2.2 Install the body of the electronic control lock: align the body of the electronic control lock with the door lock mounting holes.
Secure it firmly with the provided screws to ensure there is no looseness.
2.3 Connect the wiring harness: Plug the electronic control lock wiring harness with the original door lock wiring harness interface. Please pay attention to the direction of the interface to ensure a tight connection.
2.4 Function Test: Connect the power back to the vehicle.
Test the unlocking and locking functions of the electronically controlled locks, as well as the additional functions such as child lock and anti-theft, through the remote control key or the car switch, to see if they operate normally.
