D9EV OE-Level EV Diagnostic Tool for High Voltage Systems

Description

Unleash the Power of EV Diagnostics: The D9EV is a cutting-edge diagnostic scanner engineered specifically for the complexities of modern electric vehicles. As an upgraded version of the popular D9, it combines all the advanced features you trust with new, essential functionalities for EV repair and maintenance. Get ready to diagnose, program, and maintain EVs with unparalleled speed and precision.

• EV-specific Diagnostics & Battery Pack Analysis: The D9EV provides direct access to high-voltage system modules, allowing you to read and clear EV-specific codes. Perform one-click battery pack analysis to get instant, crucial data on State of Health (SOH), State of Charge (SOC), voltage, and temperature, empowering you to perform complete EV battery care. It includes specialized diagnostics for Tesla models (3/Y/S/X).
• OE-level Full System Diagnostics with Intelligent Topology Map: The intelligent topology map visually displays the entire vehicle system's health in a single, color-coded interface. Green indicates a healthy module, while red highlights a problematic one, boosting your diagnostic speed by up to 60% and helping you quickly pinpoint the exact location of a fault.
• ECU Coding and Offline Programming: This tool performs online coding to refresh hidden features and personalize vehicle settings. For certain models like Ford, Mazda, and Lincoln, it supports offline programming to reprogram adaptive data after component replacement, ensuring your repairs are complete and professional.
• Bidirectional Control / Active Testing: The D9EV allows you to send commands to a vehicle’s ECUs to control modules and components directly. Test wipers, power seats, ABS pump, EVAP system, and more from the tablet. This saves significant diagnostic time by helping you confirm if a component is functional or faulty with a simple tap.
• 45+ Integrated Services: A complete maintenance solution in one device. With over 45 service functions, you can handle a wide range of maintenance tasks including EGR Relearn, FRM Reset, AdBlue Reset, Nox Reset, HV Battery and VGT Relearn, and more. This comprehensive suite provides professionals with all the options they need for routine and complex service work.
• Extensible Capabilities: Grow your business with a future-proof tool. The D9EV is compatible with add-ons like professional key programmers (KC100, KC501, KS1, KS2, M821), a Digital Video Camera (XV100), and EEPROM adapters, allowing you to expand your service offerings beyond diagnostics.
• Top Hardware Configurations: The D9EV runs on Android 10.0 with a quad-core 1.8GHz CPU, 2G RAM, and a massive 128G storage, all displayed on a vivid 9.7-inch touchscreen. It supports both BT/Wired connections and WiFi Online Upgrade, ensuring a seamless and fast user experience.

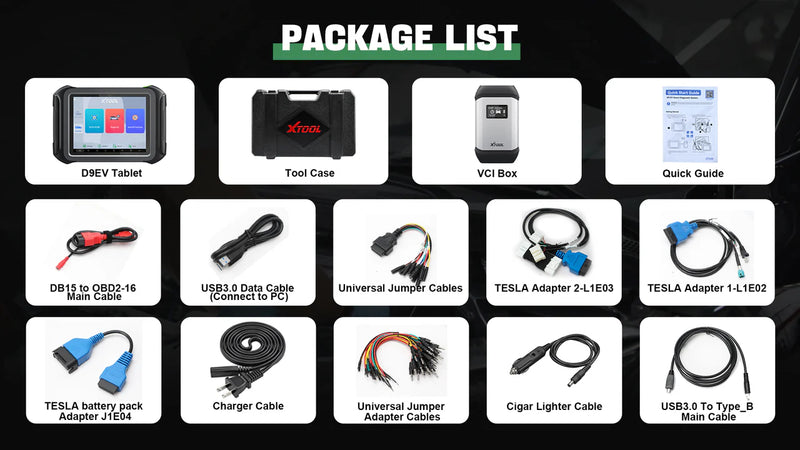

• What's in the Box: The package includes everything needed to get started, including Tesla adapters, universal jumper cables, and a VCI module with a variety of cables for different scenarios.

Attention

• Choose the D9EV: If you primarily serve the new energy vehicle market, including pure EVs and plug-in hybrids, and require deep analysis of high-voltage systems and battery packs, the D9EV is your ideal choice.
• Please send the specific model and function to ask the seller whether it is
  compatible before purchasing.

Included

Installation steps

1. Setup

• Power On: Press and hold the power button to turn on the tablet.
• Activate: Connect to Wi-Fi and follow the on-screen prompts to register your device.

2. Connect to Vehicle

• Locate the car's OBD port.
• Use the correct cable to connect the XTOOL tablet to the vehicle.
• D9EV: Use the standard OBD cable.
• Turn the vehicle's ignition ON (do not start the engine).

3. Diagnose

• The device will automatically read the vehicle's VIN.
• Tap "Diagnosis" -> "Auto Scan" to check all systems.
• After the scan, the Topology Map will show you which modules are healthy (green) or have faults (red).
• Tap a red module to see and clear fault codes.

4. Key Features

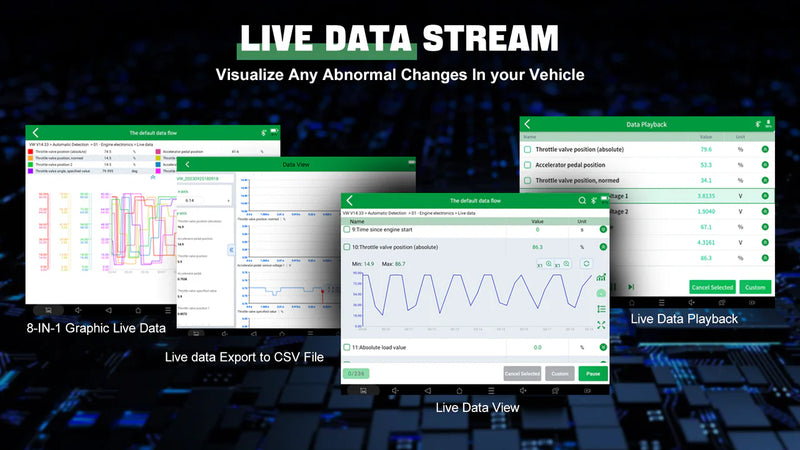

• Live Data: View real-time sensor information (e.g., RPM, temperature).
• Special Functions: Perform maintenance resets (oil, brake, etc.).
• Active Test: Use the tablet to control vehicle parts (e.g., wipers, windows) to test them.
• ECU Coding: Program and customize vehicle settings with an internet connection.

5. Maintenance

• Update: Connect to Wi-Fi and tap "Upgrade" to keep the software and vehicle coverage current.
• Charge: Use the provided charger to keep the device ready for use.
